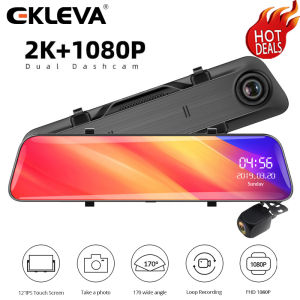

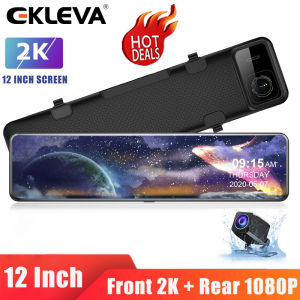

EKLEVA 12 Inch Touch Car DVR 2K 1440P Mirror Dash Cam Auto Recorder Dual Lens 1080P Waterproof Rear Camera Car Video Recorder RearView Mirror Registrar Super Night Vision

EKLEVA 12 Inch Touch Car DVR 2K Mirror Dash Cam Hisilicon Auto Recorder Sony IMX335 Dual Lens 1080P Waterproof Rear Camera Video Recorder Rearview Mirror Registrar

Product Description:

Specification Model: CMC46-LEFT

Chip: HISILICON 3556V200

Display: 12 inch

Memory card: Class 10 TF card(8-64GB)

Video resolution:2560X1440P(2K) & 1920x1080P

Video Encode: H264/ H265

Camera sensor: Sony IMX 335

Time-Lapse : Off/ 1S/ 2S/ 3S

Parking Guard: Off/ Low/ Middle/ High

Screen Saver:Support to set the time when the screen turns off automatically

Frequency: 50HZ/ 60HZ

Key sound: ON/ OFF

Boot sound: ON/ OFF

Speaker Sound: Mute/ Low/ Middle/ High

G-sensor: Off/ Low/ Middle/ High

3 options of sensitivity Lens: 8M pixels,170 degrees HD wide-angle Seamless video: No interrupt a video

Loop video: Optional 1/2/3/5 min, new fileauto overwrites the old file when the card is full.

Aperture: F2.0

Button Sound: Turn on/off

Date/ Time: Support

2 split view display simultaneously: Support

Battery: Build-in lithium polymer battery

Car USB power: 5V

Working temperature:-20℃ to 70℃

Storage temperature:-30℃ to 80℃

Installation type: Rearview mirror Camera

Urgent Video Mode:Support locking emergency video.

Video Playback on the Mirror: Front urgentVideo, Front Ordinary Video, Rear Ordinary Video, Rear Urgent Video

Photo Playback on the Mirror: Front Photo/ Rear photo.

Application: 2K Camera, Streaming media rearview, Excellent night vision, Reversing video, 24h Parking monitor, Collision sensor, Front and rear dual video, Loop recording, Adjustable view angle, Special mounting holder

CMC46uses the Original Hisilicon Chip and Sony image sensor. Professional image processor and Sony sensor, the picture quality are more detailed.

Compare to 1080P,2k resolution can greatly enhance night vision and obtain sharp,color-accurate images, visible video any situation-day or night.

1080P resolution clear viewing rear view images, and are-versing line Better than the original car reversing images, reversing more secure.

12-inch Full View Touch Screen provides a crystal image without any delay. Very clear and smooth images display as a stream flowing on the excellent WDR and Auto Adjusting Brightness Streaming Mirror.

CMC46is equipped with this streaming media technology, makes the driving rear view angle more widely, it is a triple-wide view angle than the traditional mirror. Dvr use HD to provide you with flawless images in rain, fog, snow, or even at the low-light-level.

1:1 split-screen design to switch front and rearview recording, big screen and clearly and easily to check rearview. You can switch views by swiping your finger left or right. It contains 3 views: front view, rear view, front & rearview.

2.5D curved glass design,scratch-resistant,anti-glare,anti-fingerprint.

The front camera image sensor is Sony IMX335, and 6-lens quality offers non-deforming images, together with a 170° wide-angle, captures the whole road’s picture in 1440P high resolution.

170 Degree Angle 1440P front camera with 140 Degree Angle 1080P Night vision Rearview Camera, allows for simultaneously recording videos from two different angles. Two split views make you have a clear view from the front and back-up camera.

Smart rearview angle switch between driving and parking. You could see all further vehicles and objects clearly behind.you while real-time driving and it will switch the rearview camera automatically to give a closer backup image when parking.

If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours. If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.

Use the buck line to not occupy the cigarette lighter interface. First, connect the negative pole(black line) of the buck line to the ground of the car fuse box; Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box; If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.

Packing List

1 x DVR


1 x Rear camera


1 x Power charger


1 x User Manual


2 x Bandage
