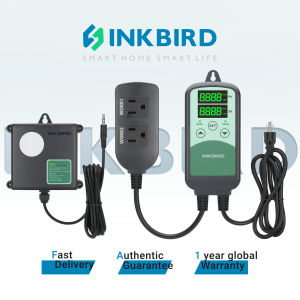

Inkbird ICC-500T CO2 Controller CO2 Meter Carbon Dioxide Controller for Grow Room and CO2 Generator with CO2 Sensor for Home Grower

New Version Inkbird Digital Prewired Programmable ICC-500T CO2 Controller Carbon Dioxide Regulator Adjust with S01 Probe Sensor for Hydroponics Greenhouse etc

Features:

【Dual Relays】: The CO2 controller can be connected to the CO2 regulator or generator and the exhaust fan simultaneously.

【Dual Sockets】:  WORK1: The CO2 regulator or generator; WORK2: The exhaust fan.

【Dual Display Windows 】:  display the current measured CO2 concentration value and the set CO2 concentration value simultaneously；

【Accurate Reading 】: Adopted the NDIR sensor to get a precisely CO2 ppm level；

【Alarm 】: supports CO2 calibration and high/low CO2 concentration alarm；

【Easy to Use】:  Play-N-Plug design, no more complicated installation,turn on/off the CO2 generator or regulator and the fan automatically according to your settings

【Warranty】: 2 years warranty, ICE&FCC certificated, safe, and reliable.

【Widely Use for multiple fields】:  (Like: Agricultural and Livestock Industries): wide range of uses and can be used for ventilation system building control and HAVC equipment. (Difference depending on the SENSOR)

How to install

Difference depending on the SENSOR:

❤S01 Sensor

Multiple Uses: Widely applied in the ventilation system, building control, and HVAC equipment.

❤B01 Sensor

Multiple Uses: Widely applied in agricultural and livestock industries, greenhouses, industrial fields, and general ventilation HVAC.

Specification:

--Brand: INKBIRD

--Model: ICC-500T

--Input / Output Power: 100~240Vac 50/60Hz 10A MAX

--Disconnection Method: Type 1B

--Rated Impulse Voltage: 1500V

--Automatic Operation: 6000 cycles

--Working Environment: room temperature

--Storage Temperature: 0℃~60℃/32℉~140℉

--Storage Humidity: 20~80%RH (No freezing or condensation)

--Warranty Period: 2 years

--Measurement Range: 0~9,999 ppm

--Sensing Method: NDIR

--Sensor Working Temperature: 0℃~50℃/32℉~122℉

--Working Humidity: 0~95%RH (non-condensing)

--Calibration Method: CO2 reading calibration(current CO2 concentration Value+CO2 calibration value)

--Sensor details:

   Error: ± (30 ppm+3% MV)--S01 , Response Time (63%): 20 seconds---S01

   Error: ± (30 ppm+5% MV)--B01 , Response Time (90%): 120 seconds---B01

Package Contents

--ICC-500T*1

--B01 Sensor/ S01 Sensor

--User Manual*1

--Warranty Card*1

Multiple uses
