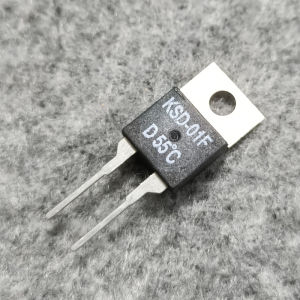

KSD-01F JUC-31F TO-220 temperature control switch Relay for PCB Repair 0C 40C 45C H/D55

Contact load: 220VAC 1A or 24VDC 3ADimensions (total length × width × thickness): 29.7 × 10.2 × 4.7mmTemperature range: 0℃-130℃ (one specification per 5℃)Contact type: normally closed (-D) or normally open (-H) twoPackage form: TO-220 metal bottom plateContact resistance: ≤ 50mΩInsulation value: ≥100MΩ (500VDC)Insulation strength: 1500V/DC, 60HzStandard tolerance: ± 5℃Working environment temperature: -55℃-160℃ (short-time maximum temperature: 260℃ for 10 seconds)Weight≤2gworking principle:KSD-01F temperature control switch adopts TO-220 package form, sudden jump type, single-pole/single-throw contact point of 100% conduction structure, when the outside temperature is too highWhen the temperature is transferred to the corrected bimetallic strip, it will act quickly, thus cutting off or connecting the circuit (normally closed or normally open). When the temperature drops toWhen the temperature is reset, the bimetallic strip is quickly reset, and the work is repeated to ensure the safety of the product temperature protection.Product Usage:Suitable for space-saving PC boards. Typical uses include alarming or shutting down the system when the circuit is overheated; computers and computer peripherals, electrical equipment;Electronic products; power supplies; airplanes, automobiles, medical equipment and test equipment; household appliances and circuit boards for temperature control and thermal overload protection.
