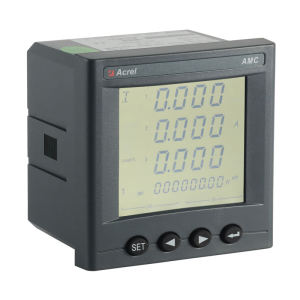

Acrel AMC96L-E3/KC RS485 4DI2DO 3 Phase 3 Wire Panel Energy Meter Electricity Power Meter

Acrel. Three-phase AC Multi-function Panel Energy Meter AMC96L-E3/KC. Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cos and etc Accuracy: 1 kWh), 0.5 Active Power Rated Voltage: 400V or 660V AC L-L direct connect), 100V AC L-L via PTs Rated Current: 5A AC or 1A AC via CTs Power Supply: 85~265V AC/DC, 24V or 48V DC Communication: RS485 MODBUS-RTU SOE Funciton: Event&Demand&Extremum Record Harmonic Measurement: 2~31st and total Harmonic Analog Output: 4~20mA DC or 1~5V DC DI/DO Function: 2/4-channel DI&2-channel DO. Product Description. AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates measurement of power parameters such as single-phase or three-phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor and power monitoring and assessment management. At the same t
