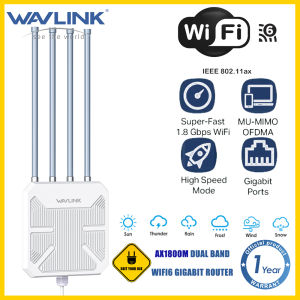

Wavlink AX1800M Dual Band WiFi6 Gigabit Wireless Router 2.4GHz (574Mbps) +5GHz (1201Mbps) Outdoor with PoE/4x8dBi High Gain Antenna/IP67 Weatherproof Enclosure

WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & AnywhereWN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional glass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.How to install antennas and Ethernet cable?①Pass the RJ45 cable through the waterproof connector cover.②Screw the waterproof seal into the waterproof connector bracket.③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.④Put the waterproof sealing ring on the waterproof connector bracket.⑤Connect the RJ45 cable to WAN/LAN port.⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.How to install the product on a column?①Stick two silicone pads on the bracket and post respectively.②Thread the cable ties through the fixing point of the bracket.③Fix the product to the post with cable ties.Glass Tube High Gain Antennas4 x 8dBi omnidirectional antennas are covered by strong glass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.IP67 Waterproof EnclosureEquipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.PoE Power SupplyBoth active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.574Mbps on 2.4G & 1201Mbps on 5GDual band AX1800M provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.High Power AmplifiersDual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal. Advanced WiFi SafeguardWPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.Specification- Model: WL-WN573HX1- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in- Standard: IEEE 802.11 ax/ac/a/n/g/b- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX- Antennas: 4 x 8dBi Omnidirectional Antennas- PAIR/RESET LED: Blue- PoE Converter Status LED: GreenFeatures- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.- Supports 802.3 AT/AF active PoE and passive PoE to supply power.- Glass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.Warm Tips①The PoE converter is not waterproof, please install it indoors.②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.③Please install the product 2-3 meters above the ground for better performance.④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
