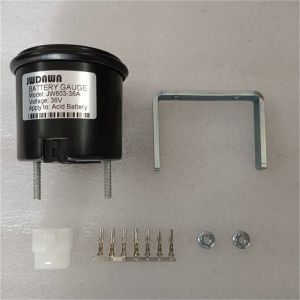

Replace 52mm Curits 803 24V 36V 48V 72V 80V Battery Gauge 803RB7280BCJ3010 803RB7280BCJ301O 803RB2448BCJ3010 803RB2448BCJ301O 24 36 48 72 80 Volt Hour meter Indicator

For Curits 803 803R 803RB7280BCJ3010 803RB7280BCJ301O 803RB2448BCJ3010 803RB2448BCJ301O Type

24V 36V 48V 72V 80V Battery Gauge Hourmeter Indicator

Mounting Hardware and Instructions included

1:The Model Installation Kit includes a pre-assembled mating connector.

2:The Model fits into a dash-panel cutout measuring (52 mm).

3:Dimensions:diameter 51.46 mm,thickness 68 mm maximum.

Gauge Features

1:Flashing red LED signals energy reserve alarm at 70% discharged.

2:Double flashing red LEDs signal empty alarm at 80% discharged.

3:Normally closed relay opens at 80% discharge for lift lockout. This unique holding relay will only lock out at the end of a lift cycle.

4:Recognizes improperly charged battery. 5:Keyswitch activated LED display (Fuel gage electronics are energized as long as they remain connected to the battery). 6:Wide range adjustable discharge profile. 7:Dual reset methods in each gage:Open Circuit Reset for vehicles that exchange batteries and Charge Tracking Reset for vehicles whose batteries remain connected to the gage during recharge. Hour Meter Features 1:Monitors use-time throughout the equipment’s lifespan. 2:Records and displays up to 99,999.9 hours on its LCD, rolls over and continues to count and display. 3:Hour meter LCD remains on as long as battery is connected. 4:Stores latest total in EEPROM nonvolatile memory, without need of power. 5:Operates and displays in temperatures from -40 to +65 under harsh conditions of vibration, shock, moisture and dust.
