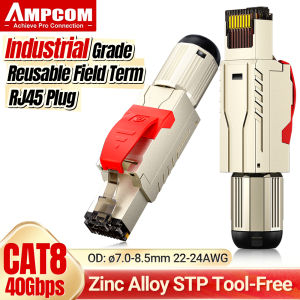

AMPCOM CAT8 RJ45 Connector Shielded Modular Plug - Field Termination Tool-Free 40G 2Ghz 22-24AWG - (Fits CAT7A & CAT8 Cable)

Material:

•Extractor: PC, UL 94V - 2

•Housing: Zinc die-casting with nickel plated.

•Plug housing: PC, UL 94V - 2

•Plug contact: Phosphor bronze with 100 μ‘’ nickel plated. Min.50 u " gold plated on surface contact area.

•Cover: Zinc die-casting with nickel plated.

•Wire management bar: PC, UL 94-V2, white color.

•IDC terminal: Titanium copper with nickel plated.

•Grounding contact: Zinc die-casing with nickel plated

•Boot: Housing: Zinc die-casing with nickel plated. CAP: PC, UL94V-2, black color.

•PCB: FR4, UL 94-V0.

•Copper foil tape.

•Dust cap: PE, black color. RoHS 2 compliant

PHYSICAL CHARACTERISTICS

T568A & T568B wiring.

•Insertion: 30N max.

•Retention strength: 7.7 kg between jack and plug

•Operating temperature: - 10℃ to 60℃ Life time (mating cycles):

•Plug: 750 cycles min.

•IDC: Suitable for 22 - 24AWG stranded and solid wire, min. 20 installation cycles.

•Suitable for cable jacket OD: 7.0 - 8.5mm.
