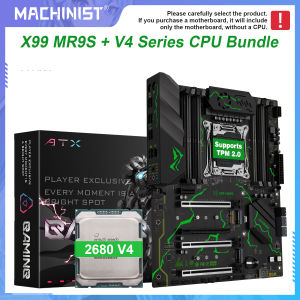

MACHINIST X99 MR9S Motherboard Optional Kit LGA2011-3 Xeon E5 2680 V4 CPU DDR4(MAX 256GB)NVME SATA WIFI M.2 Four-channel tpm2.0

Please note that the newly upgraded motherboard has TPM2.0, but only supports the MSI 14pin interface.Please pay attention to bundle options before purchasing. Purchase a single motherboard. We do not ship CPUs and memory. Please check carefully.CPU:Processor series: Xeon E5 2680 V4 (14 cores/28 threads)Main frequency: 2.4GHzSocket type: LGA 2011-3Level 3 cache: 35MBProcess: 14nmThermal design power consumption (TDP) 120WMotherboard parameters:Brand: MACHINIST;Motherboard model: X99 MR9S 2.0;Structure: ATX;CPU: Intel Xeon E5 LGA2011-3 pin series processor, supports DDR4 series memory;South Bridge Chipset: Intel B85 series chipset (SR178);Memory:Technology: Quad-channel DDR4 2666MHZ/2440MHZ/2133MHZ;Maximum supported capacity: 256GB;Slot: 8240 PIN DDR4/ECC;Supported memory type: supports DDR4 server and desktop memory. (Please use international brands such as Samsung, Kingston, SanDisk, Micron, Hynix, etc. Other brands may not be compatible)Rear I/O:PS/2: 1KB interface, 1MS interface;USB interface: 2USB3.0; 4USB2.0;Ethernet: 1 Gigabit network card, RTL8111K network card; Audio: 1 (Mic-in, Line-out, Line-in, SIDE, REAR, C/SUB).Internal interface:USB 2.0: 2 (one FUSB can be converted to two USB 2.0 ports);USB 3.0: 2 (one FUSB can be converted to two USB 3.0 ports);Serial port: 1;PCIe: 5 PCIE interfaces: 2 X16, 1 PCIE X1, 1 PCIE X4;M.2: 1 NEMVM.2, 1 SATA M.2;WIFI: 1 WLAN-1 interface;ATXPWR interface: 1x8PIN standard socket; 1x1x24PIN standard socket;SATA interface: 10 SATA interfaces (SATA3.0);Diagnostic card: 1;Audio: 1 2x5Pin pin;Motherboard size: 244MM303MM.Motherboard weight (including packaging): 1.5kg.NOTES：(1) The color of the slot base plate may vary from batch to batch, but this will not affect the use of the product. The product is continuously optimized and upgraded.(2) Please allow 1-3mm error due to manual measurement.(3) Due to different monitors and light, the picture may not show the actual color of the item. Thank you for your understanding.(4) This plan requires a strong power supply. Please make sure your power supply is sufficient to support this plan. (At least 500w type power supply).(5) The battery in the motherboard picture is not included and will be removed before shipment because this battery is prohibited according to logistics requirements.
