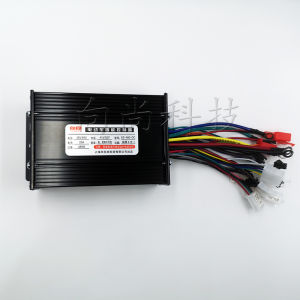

Electric Vehicle Controller 48v60v64v Three-Mode 450W Sine Wave Mute Suitable for Green Source Emma Etc.

Note: provide telephone technical support. If necessary, please contact Wangwang and ask for the number of technical engineers, or we will contact you voluntarily!

Three-mode sine wave LCD one-line mute Black Gold cruise EABS shift three-speed button three-speed support tricycle for tricycle please plug in three-wheel selection line the same principle of cruise and EABS 。

product Size: 12.28.54.5cm (without baffle plate)
how to select the controller model
first, look at the number of V batteries of your electric car. You can see the voltage (V) on the label of the previous controller, select the controller with the corresponding voltage, and then look at the number of current A of the previously used controller, for example, the current 16A-18A is 350W controller, 22A-24A is 450W controller, 28A-30A is 500W controller, 31A-33A is 600W controller, 33A-35A is 800W controller, 36A-38A is a 1000W controller, 40A-43A is a 1200W controller, and about 50A is a 2000W controller.




For more information, see Company website: http://www.tcxsdz.com





about how to wire


90% of our users installed by themselves. Each of our products has an installation diagram. If you really don't understand, customer service will serve you and contact customer service.

Factory Direct genuine goods electric car battery car controller  6tube 350W，9tube 450W，12tube 500W，15tube 800W(Three wheels with reversing) full series controller. Super controller can be used with or without Hall. It is suitable for electric bicycle, electric motorcycle, electric tricycle, cargo three wheels, etc.
36V 48V battery selection 36-48V controller
60V    64V    battery selection 60-64Vcontroller
72V        battery selection 72Vcontroller
serious Warning: overpressure is absolutely not allowed, for example 60Vcontroller installation 72Vbattery, 48Vcontroller installation 60Vbattery, an obvious feature of this over-pressure damaged controller is 2the tube burst at the same time, so the phenomenon of this tube burst is 100% caused by overpressure, which is not within the scope of warranty.
Installation method ： first, determine the positive and negative poles of the power supply. As long as the positive and negative poles of the power supply cannot be connected in reverse, other functional lines can be connected until they are connected in pairs. If you encounter problems during assembly ，please contact us in time.
1; Insert the self-learning line first!!
2; Connect the power cord, be careful not to connect the positive and negative poles. Connect the electric door lock line, Hall Line, phase line, turn line!!
3; Power on, the motor will rotate. After its rotation is stable, if it is reversed, pull out the self-learning line, and then plug in the self-learning line, it will turn forward, just pull out the self-learning line after it is stable.
4; After the controller has learned by itself, it will pick up some functions on your car, such as anti-theft, three-speed, reversing, power-off braking, power assistance, etc!
5; There is a wiring diagram on the back of the outer package for reference!!
Installation Instructions

product shooting display

product shooting display

product shooting display

product shooting display
  product shooting display

notice to buyers:
when the buyer receives the parcel from the courier company or the Post Office staff, be sure to check the quantity of the goods in the parcel on the spot, whether the accessories are complete, and whether there are obvious reasons for falling or hitting the outer surface of the goods, damage caused by squeezing and pressing.
Express instructions:
our first choice yunda Express 、secondly shentong , YTO, ZTO (If there is no special requirement, send it yunda Express , please specify or leave a message if you have special requirements)
