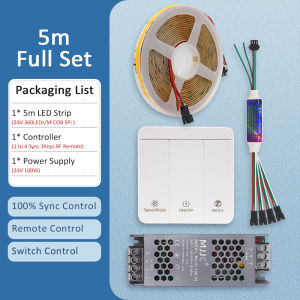

MJJC | WS2811 Flowing Water Led Strip COB 24V 10M 15M 20M Warm Cool White Sequential Horse Race Led Tape Light with Sync Remote Control

Parameters:Product Name: WS2811 IC COB Horse Race Led StripLED Type: COB LED DiodesLED Qty: 360LEDs/MPCB width:10mmMax Power: 10-12W/MWorking Voltage: DC 24VColor: Cool White / Warm White / Natural WhiteColor Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000KIP Rate: IP20 Non-waterproofConnector: 3 Pin Male & Female ConnectorPackage: 5M/RollConnection:Red Wire: +24VGreen Wire:DI/DATAWhite/Black wire: GND / -24V*** Product Parameters of the Controller:Product Name: Single Color Horse Race Led Strip ControllerWorking Voltage: DC24V ( The controller dont connect to the power supply)Control Distance: Battery Type: CR2032 button cell ( Not included) Modes: 26 Different modes built-in controller.With Switch Function ( Green Wire connect to a normal switch): Turn ON,the lights running, Turn OFF, the lights backflow.Max Pixel Control:Max Control Pixels: 3200pcs Pixels,if more than 3200pcs pixels,just add extra receiver or amplifier to realize sync working.Installation: With 2pcs double-side tape,anywhere to stick.3Keys Remote Function: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down*** Features:1. one receiver can be controlled by max 6pcs 3keys panel remotes.2. Two or more receivers can be connected together,realize sync working. The wire between two receiver can be up to max 10metes for extension. Best choice for projects sync working.3. The controller can be work with normal switch, Turn ON/OFF by the switch without remote.It also can connect to Mihome Smart Switch to realize voice control.*** Sync Projects:Wire Connection Sync Working: 99.99% sync(Recommend)Wireless connection sync working: Maybe has delay*** How to pair Remote to the Receiver,make them working independently ?Step 1: Turn on the power supply.Step 2: Long press "Mode"keys 3seconds within 2 seconds after powering ON.Step 3: Sucessfully if the led strip quick flash 3 times.1pc receiver can be controlled by max 6pcs panel remote.- IF you led strip only 10-12m working,please do "pixel setting" on the remote. NOT quality problem.*** How to setting pixels?Step 1: Turn OFF the lightsStep 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.Step 3: Press " ON/OFF" to save, Exit. Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.IF Your Led strip is flickering, this is Not quality problem. Just connect all led strip to the power supply in case of voltage-drop as following photo shows:
