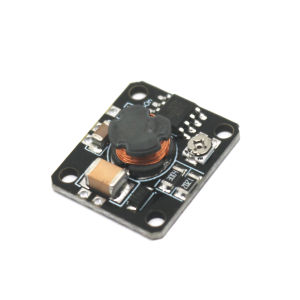

Nixie Tube High Voltage Power Supply DC-DC 3.3-20V TO 120V-300V Adjustable output Boost Converter 5V 12V 160V 170V IN14 IN12 6E2

Nixie Tube Power Module | DC-DC 3.3-20V to 120-300V Boost ConverterUltra-Compact Design: 20×17mm | Precision Voltage Adjustment⚡ Key SpecificationsParameterSpecificationInput Voltage3.3V - 20V DCOutput Voltage120V - 300V DC (Adjustable)Max Output Current15mA (no heatsink @12V input)No-load Current1mA (@12V input)Efficiency≈80%Control SignalEN Pin (Low = shutdown)🎛️ Operational FeaturesSingle-Turn PotentiometerSmooth output voltage adjustment (120-300V range)Enable ControlPull EN pin to GND for instant shutdownAnti-Interference DesignStable output for sensitive nixie tubes📐 Physical DetailsDimensions: 20mm × 17mm (0.8" × 0.7")Mounting: 4x corner through-holesWeight: 3.2g⚠️ Critical Usage NotesThermal Warning"Continuous output >10mA requires heatsinking"High-Voltage Danger*"300V output LETHAL - Professional handling only"Load Compatibility"Designed for nixie tubes (IN-14/IN-16 etc.) - Not for power supplies!"*🔌 Connection GuidePinFunctionConnectionIN+DC Input Positive3.3-20V sourceIN-DC Input GroundPower supply GNDENEnable ControlPull to GND to disableOUTHigh-Voltage OutputNixie tube anode
