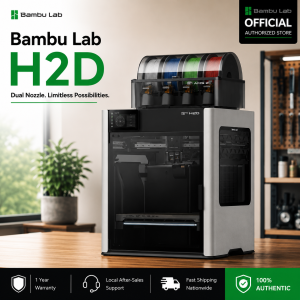

Bambu Lab H2D 3D Printer Dual-nozzle Multi-material 3D Printing

Bambu Lab H2D: All-in-One Personal Manufacturing HubThe Bambu Lab H2D redefines personal manufacturing by integrating 3D printing, laser engraving, cutting, and digital plotting into a single, compact system. Designed for prosumers and hobbyists, it offers versatility and precision for a wide range of creative projects.Product Features:Dual-nozzle Multi-material 3D PrintingOptional 10W/40W Laser and Cutting Module350320325 mm³ Print Volume5μm Resolution Optical Motion CalibrationClosed-loop Servo Extruder350°C Nozzle & 65°C Active Chamber HeatingVoltage Range: 100-120 VLaser Engraving & Cutting:Laser Modules: The H2D comes with optional 10W or 40W 455nm laser modules. The 10W laser can cut up to 5mm plywood, while the 40W laser can handle materials up to 15mm thick, allowing for detailed engraving and cutting on various materials.Air Assist & Safety Features: An air assist system improves surface quality by cooling the laser path, ensuring cleaner and more precise results. The printer also includes laser safety windows and an emergency stop button for enhanced user safetyCutting Module: The optional cutting module enables precise cutting of materials like paper, vinyl, and leather, expanding the printer’s capabilities beyond traditional 3D printing.Pen Module: With the pen module, the H2D can draw and write, making it suitable for tasks like circuit board design, artistic sketches, and moreAdvanced Features:AI-Powered Vision System: The H2D is equipped with a quad-camera system and 36 sensors, providing micron-level motion accuracy and real-time diagnostics. This system ensures precise alignment and detects potential issues before they affect the print.Filament Management: The printer features a sophisticated filament monitoring system with 15 sensors, tracking parameters like feeding velocity, tension, and extrusion pressure, ensuring consistent and reliable printing.Health Management System: An integrated HMS provides detailed troubleshooting guidance, similar to car diagnostic codes, allowing users to quickly resolve issues and maintain optimal performance.Modular Design & UpgradabilityThe H2D’s modular design allows users to upgrade their system over time. Optional modules, such as the laser engraving/cutting, digital cutting, and pen drawing modules, can be added as needed, making the H2D adaptable to evolving project requirementsBambu Lab H2D - Technical SpecificationsPrinting TechnologyFused Deposition Modeling BodyBuild Volume (WDH)Single Nozzle Printing: 325320325 mm³

Dual Nozzle Printing: 300320325 mm³

Total Volume for Two Nozzles: 350320325 mm³Chassis & ShellAluminum, Steel, Plastic and GlassLaser Safety WindowsEquipped on Laser Edition, normal H2D can upgrade through Laser Upgrade KitAir Assist PumpEquipped on Laser Edition, normal H2D can upgrade through Laser Upgrade KitPhysical DimensionsPhysical Dimensions492514626 mm³Net Weight31 kgToolheadHotendAll MetalExtruder GearHardened SteelNozzleHardened SteelMax Nozzle Temperature350 °CIncluded Nozzle Diameter0.4 mmSupported Nozzle Diameter0.2 mm, 0.4 mm, 0.6 mm, 0.8 mmFilament Diameter1.75 mmExtruder MotorBambu Lab High-precision Permanent Magnet Synchronous MotorHeatbedSupported Build Plate TypeTextured PEI Plate, Smooth PEI PlateMax Heatbed Temperature120 ℃SpeedMax Speed of Toolhead1000 mm/sMax Acceleration of Toolhead20,000 mm/s²Max Flow for Hotend (Standard Flow Hotend)40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)Max Flow for Hotend (Optional High Flow Hotend)65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)Chamber Temperature ControlActive Chamber HeatingSupportedMax Temperature65 °CAir PurificationPre-filter GradeG3HEPA Filter GradeH12Activated Carbon Filter TypeGranulated Coconut ShellCoolingPart Cooling FanClosed Loop ControlAuxiliary Part Cooling FanClosed Loop ControlChamber Heat Circulation FanClosed Loop ControlCooling Fan for HotendClosed Loop ControlMain Control Board FanClosed Loop ControlChamber Exhaust FanClosed Loop ControlSupported Filament TypePLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GFSupportedSensorLive View CameraBuilt-in; 19201080Nozzle CameraBuilt-in; 19201080BirdsEye CameraBuilt-in; 32642448 （Equipped with Laser Edition)Toolhead CameraBuilt-in; 19201080Door SensorSupportedFilament Run Out SensorSupportedFilament Tangle SensorSupportedFilament OdometrySupported with AMSPower Loss RecoverySupportedElectrical RequirementsVoltage100-120 VAC / 200-240 VAC, 50/60 HzMax Power2200 W@220 V / 1320 W@110 V Please purchase the version corresponding to your region's voltage.Working Temperature 10 °C–30 °CElectronicsTouchscreen5-inch 7201280 TouchscreenStorageBuilt-in 8 GB EMMC and USB PortControl InterfaceTouchscreen, mobile App, PC AppNeural Processing Unit2 TOPSSoftwareSlicer & SoftwareBambu Studio, Bambu Suite, Bambu Handy

Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.Supported Operating SystemMacOS, WindowsWi-FiOperating Frequency2412-2472 MHz, 5150-5850 MHz (FCC/CE)

2400-2483.5 MHz, 5150-5850 MHz (SRRC)Wi-Fi Transmitter Power (EIRP)2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)

5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)

5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)Wi-Fi ProtocolIEEE 802.11 a/b/g/n10W & 40W Laser ModuleLaser TypeSemiconductor LaserLaser WavelengthEngraving Laser: 455 nm ± 5 nm Blue Light

Height Measuring Laser: 850 nm ± 5 nm Infrared LightLaser Power10 W ± 1 W; 40 W ± 2 WLaser Spot Dimension10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mmWorking Temperature0 °C–35 °CMax Engraving Speed10W: 400 mm/s; 40W: 1000 mm/sMax Cutting Thickness10W: 5 mm; 40W: 15mm (Basswood Plywood)Laser Safety Class for Laser ModuleClass 4Overall Laser Safety ClassClass 1Engraving Area10W: 310 mm * 270 mm; 40W: 310 mm * 250 mmXY Positioning Accuracy< 0.3 mmZ Height Measuring MethodMicro LidarZ Height Measuring Accuracy± 0.1 mmFlame DetectionSupportedTemperature DetectionSupportedDoor SensorSupportedLaser Module Installation DetectionSupportedSafety KeyIncludedVentilation Pipe Adapter Outer Diameter100 mmSupported Material TypeWood, rubber, metal sheet, leather, dark acrylic, stone, and moreCutting ModuleCutting Area300285 mm²Drawing Area300*255 mm²Supported Pen Diameter10.5 mm-12.5 mmCutting Mat TypeLightGrip and StrongGrip Cutting MatsBlade Type45°*0.35 mmBlade Pressure Range50 gf-600 gfMax Cutting Thickness0.5 mmBlade and Pen RecognitionSupportedCutting Mat Type DetectionSupportedSupported Image TypeBitmap and Vector ImagesSupported Material TypePaper, vinyl, leather, and more
