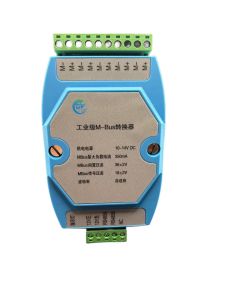

High Capacity 300+ Slave MBUS to RS485 Repeater


 Foreword
 Before using this product, please be sure to read this manual carefully。
 Please follow the instructions in this manual. our company will not be responsible for the consequences caused by failure to use according to the instructions.
 The patterns listed in this manual are only for operation demonstration and are not used as a basis for inspecting the product. if the actual product is inconsistent with this manual, please refer to the actual product or consult our company.
 This product has been strictly inspected before leaving the factory. our company is not responsible for any losses caused by users opening the shell or disassembling it without permission.
 If this product cannot work normally or needs repair, please contact our company or the dealer officially authorized by our company.
 Our company will continue to update and upgrade the products. product specifications are subject to change without prior notice.
 Our company reserves the right to interpret this manual。

 About the product
 M.BusFull bus name Meater-bus (meter bus) is a widely used bus system for metering devices. it features minimal wiring, strong anti-interference capabilities, and self-powered bus operation.
 Mb.Us.The bus is divided into master station and slave station equipment, which is a typical industrial bus. withThe rs485 bus is not compatible, so this conversion tool is needed for bus conversion.

 Instructions before use
 Mb.Us.A master station converter is a specialized bus master device characterized by a high idle bus voltage differential.Reach36V, users should pay special attention to security when using it.
 Bus short circuit is strictly prohibited.  make sure that the bus is not shorted before connecting the converter.
 When the overload indication occurs, the connection with the converter should be disconnected immediately.And disconnect the converter power supply.
 This device is...Mbus master station equipment can only access mbus slave station equipment.Strictly prohibited from being mixed with other items. M.BusMain siteEquipmentConnect.

 Technical parameters



     Type
     Parameter
     Remarks


     Power supply
     10–14 v dc



     Mbus maximum load current
     350 ma



     Mbus idle pressure difference
     36±2 v



     Mbus transmission number pressure difference
     18±2 v



     Baud rate
     Adaptive














 Note1: the power supply is recommended to be 12v dc. the power of the power supply should be determined according to the number of meters connected, and the power of the power supply is p=36 * is / 0.8; for example, if the output current of the mbus slave station is 100ma (approximately 60-80 slave stations), the required power of the power supply is 4.5w.
 Note2: the maximum number of slave devices that can be connected depends on the idle current of the slave device. for example, if the slave device's idle current is 1.2ma, the maximum number of meters that can be connected is approximately 350 / 1.2 ≈ 290.


Wiring and usage
Status of the indicator light



    Status
    Definition
    Remarks


    Slow flash
    The power supply is normal, no abnormalities



    Flash
    Overload or short circuit
    Please disconnect the power immediately for inspection.Mbus bus


    Extinguish
    Power supply abnormal
    Check the converter power supply




Recommended wiring sequence:1-> connect to the rs485 bus, 2-> connect to the power supply, 3-> connect to the mbus slave station.
When the meter is first connected,The mbus master station's output current suddenly increases, so it will be judged that the slave station is sending a signal, and the rs485 may output data at this time. this process will last for a period of time, and the duration will vary depending on the number of meters connected. the full load output may last 3 to 8 seconds. during this period, the converter cannot perform normal digital interaction. this is the characteristic of the mbus bus and cannot be avoided. please be informed.
Rs485 is a half-duplex bus. when idle, the converter is in receive mode. when the mbus master station receives data from a slave device, it actively switches to transmit mode to send the data, and then automatically switches back to receive mode. this switching time is no more than 5ms. users should be aware of the conversion time from transmit to receive mode of their own rs485 devices. if the conversion time is too long, incomplete reception may occur.
The longer the mbus bus distance, the greater the signal reflection and signal interference, so it is recommended to use double-salary shielded wire.If there is serious interference (specifically manifested as garbled characters received by the rs485 bus), it is recommended to add a 3.6k (0.5w) resistor at the end of the bus to eliminate interference.
The rs485 bus is also susceptible to signal interference, so we recommend using a double-shielded cable. if interference persists, please parallel a 120ω termination resistor between the a and b ports of the converter.Wiring diagram

Picture 1 Wiring diagram
Common problem
Question 1:Indicator light abnormal
Flash sale: disconnect power immediately and inspect.Whether mbus is short-circuited or overloaded.
Off: check the converter power supply status.
Question 2:Unable to properly copy and receive data.
->check if the data frame conforms to the slave station specification.
->check if the status indicator light is blinking slowly.
->check whether the rs485 tool is switching slowly.
Question 4:Originally.Reading is normal.Suddenly it's not possible anymore.
Mbus bus is intermittently connected or a slave device is damaged, causing mbus bus anomalies.
->power supply is abnormal.
->the converter is abnormal. when the converter is at full load output, a good heat dissipation environment should be maintained. if it cannot be cooled for a long time, the equipment may be damaged.
Question 5: none of the above answers can solve your problem.
Please contact the manufacturer for repair or return.
After-sales policy
Warranty policy
This product has undergone strict grids testing before leaving the factory. in view of its special industrial application properties, it cannot be returned or exchanged from the date of sale.
Our company provides free maintenance services within three months of sale, but the user needs to bear the one-way freight.
The warranty does not cover unauthorized disassembly of the machine.
