CRSF ELRS 2.4G 12CH PWM Receiver ExpressLRS RX 2400RX PWM/CRSF For RC FPV Drone Fixed Wing Car Boat Quadcopter

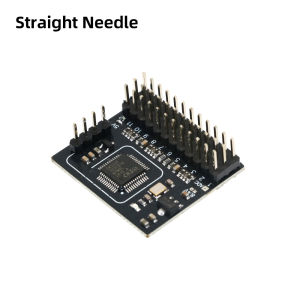

CRSF ELRS 12 channel PWM adapter board, black sheep to PWM CRSF to PWM ELRS to PWM-Only compatible with CRSF protocol receivers (Black Sheep and ELRS);-12 PWM outputs (firmware above ELRS 3.0.0 can output 12 proportional channels);-CRSF signal acquisition LED indication;-PWM output frequency 50Hz;-PWM port supports high-voltage servos;-BEC power supply range 5-12V (determined by jumper);-Support maximum 6S battery telemetry voltage (RxBt) feedback;-Size and weight: 32mm X 28mm, 5.2g;-Can be stacked and combined with our store's ELRS2.4/915 receiver to form a 12 channel receiver; Connect the receiver TXRX port to the adapter board TXRX through a serial port (please make sure to check the receiver cable yourself) Does the sequence correspond to the line sequence of the adapter board, and can it be docked with pins; The output needle can choose between straight and curved needles, and can be welded by oneself; Note: The listed price is only for the adapter board and does not include the receiver shown in the picture
