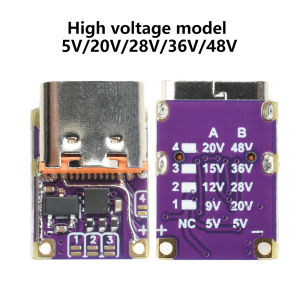

Aideepen PD3.0 PD3.1 QC3.0 Fast Charging Module DC 5V/9V/12V/15V/20V/28V/36V/48V Default 5V Output Voltage Trigger PD to DC Fast Charging Module Type-C Inter

Parameter:Product Name: Fast Charging ModuleInterface: Type-C interfaceOutput Voltage:Low-Voltage Model: DC 5V/9V/12V/15V/20V (default 5V output, other voltages can be switched via the shorting pad)High-voltage version: DC 5V/20V/28V/36V/48V (default 5V output, other voltages can be switched via shorting pads)Current: 5A (maximum), requires a power adapter or a power bank supporting the corresponding protocolSupported Protocols: PD 2.0, PD 3.0, PD 3.1, QC 2.0, QC 3.0, QC 4, QC 5Application Scope: Easy to use, widely applicable for wireless charging, Bluetooth speakers, in-vehicle devices, energy storage, industrial testing, and other applicationsDescription: The module features a high-current design, capable of delivering up to 5A output current, and offers robust compatibility with fast-charging protocols such as PD 3.1 and QC 2.0. It can easily trick the charger into outputting the corresponding voltage and supports output voltages of 5V/9V/12V/15V/20V/28V/36V/48V. The module defaults to standard 5V output and uses a short-circuit switch for voltage selection. Users can manually short-circuit the switch to select the desired voltage. The module has downward compatibility; if the power supply device does not support the set voltage, it will output the closest available voltage. It adheres to protocol priority, automatically establishes a connection with the charger, and outputs the pre-set voltage. The decoder output cannot directly charge a phone. Please confirm that the output voltage matches the charging device's voltage requirements before charging.Explanation:For example, when the customer selects a 9V output fish bait, the front power head must comply with the PD9V or QC9V protocol; when the customer selects a 20V output fish bait, the front power head must comply with the PD9V or QC20V protocol.Note:The module does not have a step-up/step-down function. The power supply equipment must support the corresponding voltage in order to induce the corresponding voltage.Package include:Module x1
