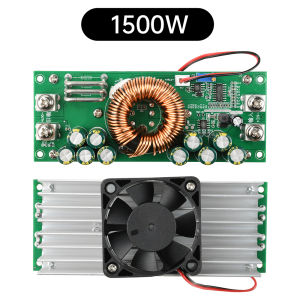

Aideepen 1500W 1200W Synchronous Rectification High-Power Buck Module Constant Voltage Adjustable Power Module

ParameterModule Type: Non-isolated buck module (BUCK)Input Voltage: DC 15-90VOutput Voltage: 2.5-72V Maximum Peak Output Power: 1200W/1500W Continuous Rated Power: 1000W/1200W Maximum Output Current: 30A/50A Rated Output Current: 28A/45A Typical Efficiency: 95% (90%-97%) Operating Frequency: 70kHzInput reverse polarity protection: None (reverse connection strictly prohibited) Output constant voltage indicator light: Yes Cooling method: Temperature-controlled fan cooling Operating temperature: 0-85°C Application scenarios: Converts high voltage to low voltage for stable power supply to equipmentNotes: 1. This power supply is a step-down power supply and can only step down voltage, not step up voltage 2. Do not reverse the input positive and negative terminals 3. This power supply is a constant voltage power supply with an unadjustable output current; it is not recommended for battery constant current charging or LED constant current driving. 4. When connecting the output to a motor, please series-connect a Schottky diode with a current rating of 50A or higher and a voltage rating of 100V on the output positive terminal to prevent reverse current flow. Do not operate at maximum power or maximum current for extended periods; ensure at least 20% margin during prolonged operation.Package includePower Supply Module ×1
