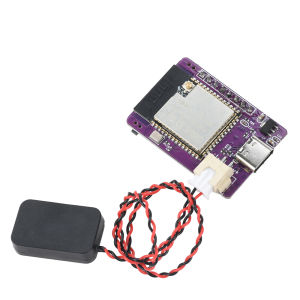

diymore | Mini ESP32-S3-N16R8 Development Board For Xiaozhi Ai Voice Dialogue Robot Module With 0.96-Inch Oled Screen Type C

Features:1. Equipped with ESP-S3 dual core processor, with a main frequency of 240MHz, supporting AI vision and speech processing.2. Optional 0.96-inch OLED screen, supporting graphical display and interactive operation.3. Built in microphone and speaker to achieve high-quality voice input and output functions.4. Supports Wi Fi and Bluetooth 5.0, suitable for smart home and IoT applications.5. The working temperature ranges from -40 ° C to 85 ° C, suitable for various environmental conditions.Parameter:MINI ESP-S3-N16R8 development board, onboard ESP-S3-N16R8 module amplifier, equipped with microphone, speaker, optional 0.96-inch OLED screen, combined into Xiaozhi AI dialogue robot kit, can DIY shell.The main parameters of ESP-S3 N16R8 include:Processor: Using Xtensa ® Dual core 32-bit LX7 microprocessor, supporting single precision floating-point arithmetic units, with a maximum clock frequency of 240 MHz.Storage: Integrated with 384KB ROM, 512KB SRAM, and 16KB RTC SRAM, supporting up to 16MB of external PSRAM.Wireless communication: Supports 802.11 b/g/n Wi Fi protocol in the 2.4 GHz frequency band, with a maximum data rate of up to 150 Mbps; Supports low-power Bluetooth 5.0 (BT LE).Peripheral interface: Provides up to multiple general-purpose input/output pins (GPIO), supporting interfaces such as SPI, I2C, I2S, UART, PWM, ADC, DAC, etc.Power supply and working conditions: The working voltage range is 3.0V to 3.6V, and the standard working temperature range is -40 ° C to 85 ° C.PCB board size: 39mm * 26mmApplication scenarios:AIoT: Suitable for artificial intelligence Internet of Things (AIoT) applications such as speech recognition, image processing, and smart homes.Smart devices: widely used in smart home appliances, smart control panels, smart speakers and other devices.Industrial Control: Suitable for industrial automation and control systems, providing high reliability and stability.Other features: Supports neural networks, basic AI vision, and complex signal processing, suitable for high-end programming education projects, robotics, IoT, and smart home applications.Package Include:MINI ESP-S3-N16R8 development board (AI voice firmware burned) * 1 pieceSpeaker wiring * 1 piece0.96-inch OLED screen * 1 piece (optional)
