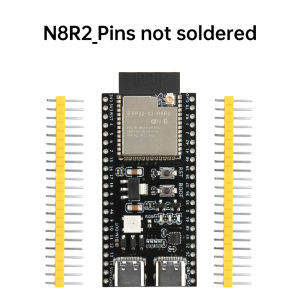

ESP32-S3-N16R8/N8R2 Wi-Fi and Bluetooth Development Board Dual Type-C Ports with Antenna Connectors

Product Features:1. High-performance dual-core processor: Integrated 32-bit LX7 dual-core processor delivering robust computational power with low-power consumption.2. Dual-mode Wi-Fi and Bluetooth support: Compatible with 2.4GHz Wi-Fi and BT 5 (BLE), accommodating multiple wireless communication protocols.3. Efficient data transmission: Data rates up to 150 Mbps ensure rapid and stable connectivity.4. Multiple Interfaces: Features two Type-C ports—one directly usable with COM labelling, the other USB-enabled for OTG operation or normal port display and programming via BOOT button hold during power-up.5. Low-Power and High-Power Modes: Incorporates a low-power coprocessor and high-power mode with up to 20 dBm output, accommodating diverse application requirements.Product Description:This development board is based on the ESP32-S3-N16R8 module, featuring numerous I/O ports and an onboard WS2818 RGB driver connected to IO48. Equipped with two Type-C ports: one directly usable (marked COM), the other USB-compatible for OTG operation. Alternatively, holding down the BOOT button during power-up enables normal port display and program download. The factory-installed program automatically illuminates the RGB when connected to WiFi and extinguishes upon disconnection.Product Specifications:Operating Voltage: 3.3–5VIO Ports: 36 IO pinsFlash: N16R8 (16M), N8R2 (8M)PSRAM: N16R8 (8M), N8R2 (2M)Interfaces: 2x I2C, 4x SPIDimensions: 57mm × 28mmProduct List:1x Development Board2x Pin Header (Unsoldered/Soldered options available)Important Notes:Ensure pins remain free from short circuits to prevent module burnout.Detailed module specifications may be obtained from customer service upon request.This document reflects the product knowledge and parameters at the time of compilation. Subsequent modifications may occur without prior notice.
