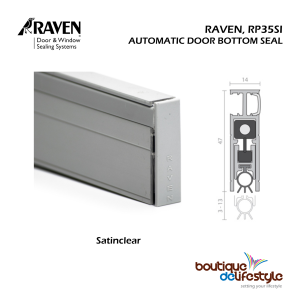

Raven Automatic Door Bottom Seal RP35Si with Installation (Perimeter Seal Option Available)

RAVEN, DOOR SEAL COMBO SET RP35Si + RP120 (WHITE / BLACK) WITH INSTALLATION NOTE: PS refers to Perimeter Seal, RP120, used for sealing gaps around the door. It will be fixed in the door frame.AUTOMATIC DOOR BOTTOM SEAL – RP35SiAn adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb or stop on its adjustable strike. Location: Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors. The RP35Si can also be face mounted to the bottom of metal doors. Min/Max Gap: 3mm to 13mm. Finish: Satin clear (silver) or bronze anodised aluminium (15µm). Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws, colour matched escutcheon plates and cover strip supplied. Fixing holes are pre-slotted. Options: Single Leaf (Bottom Seal Only)RP35Si (1 * 1070mm) Single Leaf (Bottom Seal & Perimeter Seal)RP35Si (1 * 1070mm)RP120 (6 * 1200mm) Unequal Double Leaf (Bottom Seal Only)RP35Si (1 * 920mm + 1 * 380mm) Unequal Double Leaf (Bottom Seal & Perimeter Seal)RP35Si (1 * 920mm + 1 * 380mm)RP120 (6 * 1200mm)Note: RP35Si 380mm will be an active seal for doors up to a minimum width of 295mm. If the door width is less than that, the seal will be permanently lowered and act as a fixed (dead) seal. This will not disrupt door movement and will still be effective in its function for sound, dust and insect proofing. Do check with our technician if you have any questions.ApprovalsR37913CF 5710ANSI/BHMA A156.22Acoustic AUS/NZ: NCC Spec. F5.5.UK/EU: Approved Document E. Rated to BS EN ISO 717.1.Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).FRL & FRR-/240/60 and FD240.Gasket flammability index 1 when tested to AS1530.2.Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.Energy NCC Pt. 3.12.3.3 & J3.4.Durability Tested to over 1,000,000 operating cycles without failure.Insects/Vermin AS4674, 2.1.5(iv), 2.1.7.Patented, Registered Design. DOOR PERIMETER SEAL – RP120Delta Seal ™RP120 is a co-extruded PVC acoustic smoke seal that is discreetly located in the protected corners of rebated timber or steel door and window frames. RP120 is now available in white as well as black to blend in with frames and is suitable for both new and retrofit projects.Can be used in conjunction with Raven door bottom seals and astragals and threshold plates. Location: Around metal or timber rebated frames of single and double butt hinged doors and windows. Min/Max Gap: 3mm to 5.5mm. Fixing: Aggressive self adhesive backing tape on both sides of the carrier.Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.Seal: Black or white co-extruded rigid and flexible flame retardant PVC Sizes: 6*1200mm
