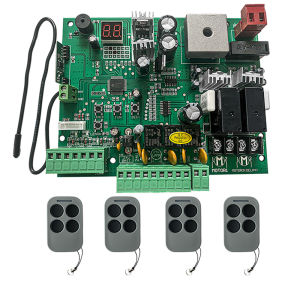

Sliding Gate Opener Operator Motor Control Board Card Controller Circuit Board for 24VDC Motor Use (Remote Control Optional)

Please note ,This PCB control board can only use the remote control in our photo, it cannot be used with other remote controlsSpecifications:1. Material: High-quality PCB Board2. Power supply: AC 24V, Available for adding 24V backup battery. 3. Application: Used for double or single DC 12-24V gate opener. 4. Encoder For transmitter: 433.92mhz rolling code. 5. Allowed Transmitters Quantity: Up to 120PCS.6. Speed -adjustable function.7. Auto closing/opening,opening/closing delay time adjustment.8. Adjustable Residence sensitivity.9.Terminals available for loop detector, photocell, push button, keypad, access control equipment10. Digital LED Menu brings a easy setting, plug and play.11. Open/Close single leaf or double leaves.12. Total 60's working time to protect the motors.Technical Parameters:1.Control panel voltage input: 24VDCAC. Can connect 2PCS 12V 9AH back up battery.Note that the control board purchased separately needs to be used with a transformer, and cannot be directly 100-250V AC.2.Motor's voltage: 12-24VDC support.The input of the control board is 24V, and the output is 12-24V.3.Encoder for transmitter: Use our own customized rolling code.(Encrypted code, no copying and non-branding of our products )4.Range of application: Suit for our double arms swing gate openers.*The Linear Spiral 24V Straight Brush Arm is supported, but only fully works with our products, and is not covered by the warranty if tested on a non-ours product.Functions and testing:1. MOTOR 1: Master gate, close first & open last.This terminal connect 1st red wire (counted from your left hand side to right hand side) 2. MOTOR2(DELAY) : Slave gate, open first & close last.This terminal connect 1st blue wire (counted from your left hand side to right hand side). NOTE! If you only have a single gate, the motor only can connect to the Motor 2 Delay terminal. 3. 2 SIDE: It is for connecting to any external device that operates a double gate. 4. COM:It is for connecting to the “ ground ”. 5. 1 SIDE: It is for connecting to any external device that operates the single gate. 6. Swipe Card: It is for connecting to any external devices to open the gate. 7. COM:It is for connecting to the “ ground ” external device. 8. IR: Infrared terminal is for connecting to the safety beam. 9. 12V: The output is for connecting to the photocell sensor, continuous output current 10. 24Vbattery +: It is for connecting the backup battery +. 11. 24Vbattery-: It is for connecting the backup battery-. 12. 24V: 24V DC output is for connecting to an external device. (such as photocell sensor, max current output 1A)13. GND: It is for connecting to the “ ground ” of an external device. 14. 24VLAMP+: It is for connecting to the flash light +. 15. 24VLAMP-: It is for connecting to the flash light-. 16. LOCK(NF): The NF terminal which used for connecting to the electric lock. 17. COM(24V): COMMONused for connecting to the“ground”of the lock. 18. LOCK(NA): The NA terminal which used for connecting to the magnetic lock. 19. GND: It is for connecting to the “ ground ” of the alarm system. 20. SP: It is 24V DC output connecting with the alarm system. 21. AC 24V:It is for connecting with the transformer. 22. Digital display: It is for showing you the setting data. 23. INC+: It is for figure increasing of setting the data. 24. FUN: Used for enter the menu setting and confirm the data. 25. DEC-: It is for figure decreasing of setting the data. 26. Learning button: It is for programming/erasing the remote control. 27. ANT and GND: used to connect with antenna
