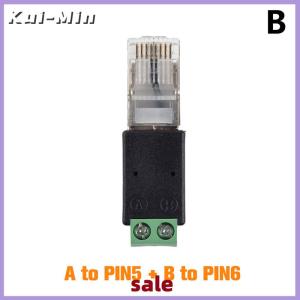

Kui-Min RJ45 to RS485 Converter RJ45 Terminal Adapter RJ45 to RS485 Adapter Head to Terminal

new 100 high quality. 1. Connection method A jacking 4+B jacking 5, A top input 5+B top input 6, A jacking 6+B jacking 7, A top input 7+B top input 8.2. The pins of RJ 45 are Pin 4 485A and Pin 5 485B), the A of the terminal is connected to the B of the 485A terminal. Connect 485B as long as these two pins are connected in reverse, such as Pin 4 485B and Pin 5.485A At this time, the A of our terminal is connected to 485B, and the B of the terminal is connected to 485A. 3. The pins of RJ 45 are Pin 6 485A and Pin 7 485B), the A of the terminal is connected to the B of the 485A terminal. Connect 485B as long as these two pins can be reversed, such as Pin 6 485B and Pin 7.485A At this time, the A of our terminal is connected to 485B, and the B of the terminal is connected to 485A. 4. The size is 4.4x1.3x1.1cm, the working temperature is-4085C, mainly for physical transfer between 485 and RJ45.5. Applicable: The physical interface of 485 is RJ45. Product information: 1. Product name: RJ45
