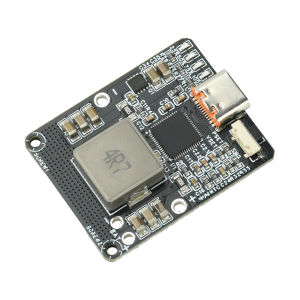

diymore | IP2369 Bidirectional High Power Charge/Discharge Module Supports PD 45W Buck-Boost Fast Charging Type C 2-6S

Features1. Supports 2-6S cell series connection for strong adaptability and flexibility2. 45W high-power output compatible with mainstream fast charging protocols3. Built-in temperature detection ensures enhanced charging safety4. Type-C port design enables more convenient and stable charging connections5. Integrated high-precision ADC for real-time monitoring of charge/discharge data6. Double-tap power on/off + battery level display for intuitive and convenient operationParameterVoltage: 2-6S lithium batteryInterface: Type-C portPower: 45W boardDimensions: 3830mmButton: Double-click to power on/off, single-click to display battery levelSupports multiple fast charging protocols including FCP, AFC, SCP, DRP, SRC, PD3.0Factory default: 4S 45W 4000mAh. Supports 2/3/4/5/6 series-connected cells. External resistor configurable for battery cell countExternal resistor configures battery type with selectable full-charge voltages: 3.65V/4.1V/4.2V/4.35V/4.4VIntegrated IC temperature, battery NTC temperature, and input voltage control loops intelligently adjust charging current based on detected charger powerStandby power consumption ≤ 100μABuilt-in 14-bit ADC enables precise measurement of input current/voltage, battery voltage/current, etc.I²C interface provides charging/discharging voltage, charging current, and other dataSupports 4 LED indicators for charging/discharging status and current capacity displayIdeal for DIY high-speed fans, ultra-fast power banks, RC model battery fast charging, laptop fast charging modules, etc.Package includeModule1
