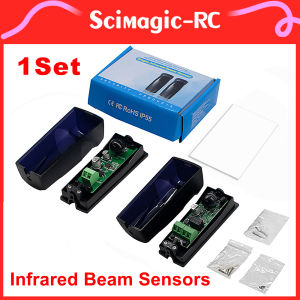

1 Set AC/DC 12-24V Universal Single Infrared Detector Photocell Sensors Beam for Swing /Sliding/Garage Gate/ Gate Alarm System

IP54 Automatic Door Wireless Battery-powered Infrared Safety Beam Photoelectric Sensor, Infrared Photocell door Opening motor 5.0Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.Narrow infrared beam (I or II) can avoid interruption by external light.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-10meters).The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.Technical SpecificationWorking voltage:Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DCWorking current:Transmitter < 85µA, Receiver < 30mA (24V DC)Photocell wavelength: 940nmAngle of emission:≤±5°Receiving range:> 12mRelay contact loading capacity:1A/30VDCSize:1004035mmNoteNo battery included and the buyer needs to prepare the battery themselves!Safety Instruction1.For security, please read the user manual carefully before initial operation;2.This photocell is without any fuse,so Please make sure the power is off before installation;3.Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated;4.Please guarantee the products used in effective working rangePicture DisplayInstallation instruction4.1 Receive module J4 in above picture is the option switch for NO and NC of photocell switch.4.1.1When the short circuit cap on NO,it is normally open.4.1.2 When the short circuit cap on NC,it is normally closed.4.2 Installation4.2.1 The photocell should be installed more than 20cm above the ground (to avoid reflection), and the distance between emitter
