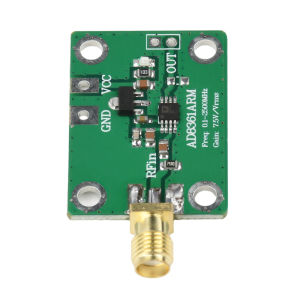

AD8361 DC 2.7–5.5V RF Power Meter 0.1–2.5GHz AM Amplitude Detector Detection Module

Product Features:1. Suitable for high-frequency receiver and transmitter signal chains up to 2.5 GHz2. An external filter capacitor may be added to enhance the average time constant3. Outputs a linearly responsive DC voltage with a conversion gain of 7.5 V/V RMS4. Operates with a single 2.7–5.5 V supply, requiring only decoupling capacitors and input coupling capacitors5. Performs true power measurements on simple and complex waveforms, particularly suited for high crest factor (high peak-to-rms ratio) signals6. Three operating modes: Grounded reference voltage source mode, Internal reference voltage source mode, Reference voltage source supply modeProduct Specifications:Frequency Range: 0.1–2.5 GHzMaximum Input: 700 mV rms, 10 dBm (50 Ω load)±0.25 dB linear response (up to 2.5 GHz)Single-supply operation: DC 2.7–5.5 VLow power consumption: 3.3 mW (3 V)Fast shutdown mode: Dimensions: 42 × 24 × 6.7 mmThe AD8361 features three operating modes supporting multiple analogue-to-digital convertersRequirements:1. Grounded reference voltage source mode, with source at zero.2. Internal reference voltage source mode, capable of biasing the output 350 mV above ground level.3. Reference voltage source supply mode, capable of biasing the output to VS/7.5.Packing list:Module ×1
