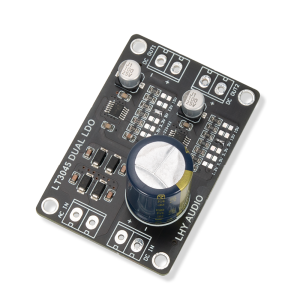

Dual LT3045 Single Power Supply Linear Voltage Regulator Module 1.2V 2.5V 3.3V 5V 9V 12V 15V DC RF Low Noise Hi-Fi DAC/ADC Audio

LT3045 2-channel independent positive voltage DC Voltage Regulator power supply low noise high precision linear upgrade DAC This product can provide a DC regulated power supply with close to 0 noise, and can provide pure power for high-precision measuring instruments, DAC audio decoders and other equipment. The noise voltage as low as 1uV is 2-3 levels lower than the regulated noise such as LM317 LM78XX, and the effect is very good, which can make the audio equipment reach the background pitch black. This power board has 2 modes of DC input and AC input, independent 2 channels of positive voltage output, and can also have multiple voltage output options, which can be directly welded and short-circuited as needed. Reminder: The default output setting for delivery is DCOUT1=5V DCOUT2=5V Input method: DC (DC 3.3V-DC 20V) / AC (AC 3V-AC 13V) Output current: 500mA (each channel) DC output mode: 2-way DC independent output DC output range: 1.2v, 2.5v, 3.3v, 5v, 12v, 15v PCB size: 42Wx62Lx29H Ultra-low RMS noise: 0.8 μ VRMS (10Hz-100KHz) Ultra-low point noise: 2nV/√Hz (at 10KHz) Ultra-high PSRR: 76dB (at 1MHz) The measured ripple is as low as 1.3uVrms. It is very suitable for decoder DAC and high-precision measuring instruments Power supply for noise sensitive RF applications, etc.
