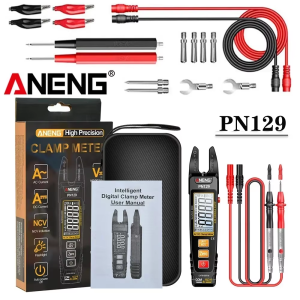

ANENG PN129 Clamp Meter Smart Multimeter 4000 Counts Non-contactAC/DC Voltage 600V Current Resistance NCV Sensing Detection

ANENG PN129 Clamp Meter Smart Multimeter Non-contact Detection AC/DC Voltage 600V Current Resistance NCV Sensing 4000 CountsTest Tools Features:LCD display: 4000 countsPolarity indication: DC voltage automatically displays a "-" sign, positive polarity defaultsOverload indicator: Only display "OL"Power requirement: AAA2(without shipment)Range selection: automaticOperating temperature: 0~40 ℃, humidity less than 80%Storage temperature: -10~50 ℃, humidity less than 85%Product dimensions: length 160 x 37 x 26mm(L x W x T)Product weight: approximately 66gSpecifications:PN129 Technical parameterFunctionRangeResolutionPrecisionDC current0A-100A10mA-100mA±(3.0% of rdg+10d)AC current0A-100A10mA-100mA±(3.0% of rdg+10d)DC voltage0V-400V1mV-100mV±(1.0% of rdg+5d)600V1V±(1.2% of rdg+5d )AC voltage0V-400V1mV-100mV±(1.5% of rdg+5d)600V1V±(2.0% of rdg+5d)Resistance0Ω0.1Ω±(1.5% of rdg+10d)4KΩ-4MΩ1Ω-1KΩ±(1.0% of rdg+10d)20MΩ10KΩ±(1.5% of rdg+10d)Test on and off beep√Automatic shutdownAfter 15 minutes NCV voltage detection√Battery modelAAA2 (without shipment)Low power display√Flashlight lighting√Weight66gH data retention√Maximum count4000 CountLCD backlit display√MaterialABSPackage List:（Without Battery）1 * Packing box1 * Storage bag1 * English & Chinese Manual1 * Clamp watch1 * Watch pen line16 in 1 Combination Line (according your choice)Usage Precautions:1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
