High-Ambition Brushless DC Solar Pump 12V/24V Silent Land And Submersible Use Solar Water Pump Dc Water Pump for Hardware Tools

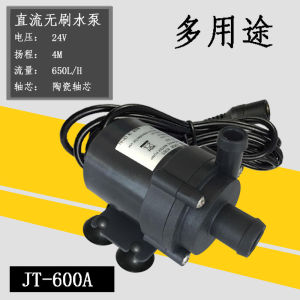

 JT600A water pump is the most New arrival DC brushless water pump in our company. It adopts ceramic shaft and graphite shaft sleeve, which is more silent. Continuous life exceeds 20000 hours (Note: factory internal testing is for reference only.) 。for water and land 2 。non-self-priming, water diversion is required for land use.

12V version working voltage : 6-12V (it is forbidden to exceed 12V), the current is 1.1A at 12V, and the maximum lift is 3.3 meters. The maximum horizontal flow is 600L/H. ( super power saving ）

24V version working voltage: 9 -24V (it is forbidden to exceed 24v) the current is 1000MA at 24V, and the maximum lift is 4.2 meters. The maximum horizontal flow is 900/H. ( super power saving ）

material : The pump body is high temperature resistant plastic. Ceramic shaft + graphite shaft sleeve.

Structure : With 4 suction cups at the bottom, it can be fixed on a smooth surface at will. The base and suction cup can be disassembled.

Power cord : diameter 3.0MM Waterproof round wire length 2 M, send Waterproof connector and short wire. (If you buy a power supply, all the power supply will be equipped with ordinary 5.5*2.1 female plug joint water pump matched with the power connector)

product Size: 69.74552.4(H)MM (including inlet and outlet)

outer diameter of water pump outlet : outer diameter 9MM, inner diameter 6.5MM

water pump inlet outer diameter ：outer diameter 13.5mm, inner diameter 10MM

applicable medium : water, oil, and other acid-base solutions. (acid liquid must be used on land)

uses: refrigeration system, water circulation system, solar heat collection cycle, solar temperature difference cycle, water heater water pipe circulation ( achieve hot water once opened ）, solar floor heating, mattress, floor heating, fountain, etc.

Maximum operating temperature ： it can withstand the high temperature of 100 degrees. The water pump can dive at room temperature, and cannot dive at high temperature. The high temperature of the water pump cannot be used continuously for a long time. (Avoid magnet decay at high temperature --- other sellers exaggerate that it is misleading to work in hot water for a long time, and any magnet will decay at high temperature for a long time!)

this price is only the price of DC water pump. If you need a matching power supply, please choose a package.

1. Overpressure operation is strictly prohibited. The 12V version is up to 12V. The 24V version is up to 24V. If the battery with a capacity of more than 10AH is fully charged, if there is no pressure limiting measure, it will be seriously overloaded. If you cannot guarantee your own power supply voltage, Please test it first.

2. Do not use AC power, many similar devices such as router power supply and computer cat power supply are AC and cannot be used!

Ripple problem (the most prone to problems): Many DC transformers are half-wave rectification, and the result is that the DC is mixed with a lot of AC components, and the pump must be broken! Brushless pump must be full wave rectifier! If you don't understand, please consult a professional!

3.Head problem: the lift of 3.2 meters does not mean that the power supply can spray 3.2 meters high. The lift points out the vertical height of the water column in the water pipe after the water inlet is connected to the water pipe. The jet height is much lower than the lift!

4. The current of using regulated power supply and switching power supply shall not be less than 2A.

5.This water pump is forbidden to be disassembled privately, because the ceramic shaft and sleeve are precisely installed, and it will be difficult for non-professionals to recover after being disassembled. The buyer must bear the quality problems caused by private disassembly and assembly!

6.Ferromagnetic impurities and particles are not allowed to enter the magnetic actuator and bearing friction; Wash them in time after conveying the medium that is easy to crystallize or precipitate (the operation is: pour clean water into the pump after stopping the pump, and run 1minafter the discharge is clean); When there is solid particle medium in the conveyor belt, it should be filtered at the inlet of the pump flow pipe. 。

The company has the right to give up after-sales service for losses caused by illegal use of power supply.

1. Digital components are used for reversing, and carbon brushes are not required for reversing;

2. high-performance Abrasion Resistant ceramic shaft and graphite shaft sleeve are adopted, and the shaft sleeve is integrated with magnet through injection molding to avoid wear, and the service life (can be as long 5year, no maintenance (Note: factory internal testing is for reference only. ）；

3. the stator part and rotor part of the water pump are completely isolated, and the stator and circuit board part are encapsulated with epoxy resin, 100%waterproof; It can be used by water and land 2!

4. the rotor part adopts permanent magnet, and the water pump body adopts Environmental-Friendly material, with low noise , small size, high efficiency, low power consumption;

5. various required parameters can be adjusted through stator winding, and wide voltage operation can be performed, for example 12Vmodulation 2Mhead, can also be modulated 5Mhead;

6. water pump fixed base with 4 suction cups, you can also remove the suction cup and fix it in other places.
