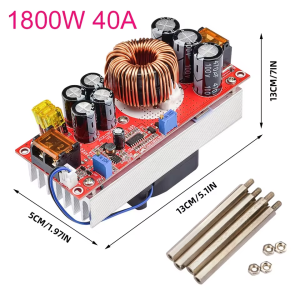

diymore | 1800/1500/1200W DC-DC Boost Converter Step Up Power Supply Module 10-60V to 12-90V Adjustable Voltage Charger 40/30/20A

1800W Product Parameters:Output power: 1800WInput voltage range: 10V-60VOutput voltage range: 12V-90VInput current: 40AOutput current: 22AConversion efficiency: 48V to 60V 8A (98.1 %)48V to 72V 8A (98.1%)48V 84V 8A (97.6%)Charge Regulation: 10% to 50% charge (72V output)Temperature coefficient: 50% loadRipple and Noise: 20MHz bandwidth (48V-72V 4A) 100mVp-pSwitching frequency: VIN = 48V VO = 72V 4A (110khz)No-load current: VIN = 48V VO = 72V (18mA)Input reverse protection: yesStorage humidity: 95%Operating temperature: -20 65 °CStorage temperature: -40 125 °COperating Temperature Rise: 48V to 60V 5A (45 °C)Overheating Protection: 60°CWiring method: input, output (solderless, terminal block).Cooling method: strong air cooling1200W Product Parameters:Input voltage: 8-60VInput current: 20AStatic current: 15mA (12V output 20V, the higher the output voltage, the greater the current, the calmer it will be)Output voltage: 12-80V continuously adjustableOutput current: 20A MAX exceeds 15A, please enhance heat dissipation (related to input and output pressure, the higher the pressure, the smaller the output current)Constant range: 0.5-20AOutput power: Input voltage * 20A, for example: Input 12V * 20A=240W, Input 24V * 20A=480WInput 36V * 20A=720W, Input 48V * 20A=960W, Input 60V * 20A=1200WWorking temperature: -40 to+85 degrees (if the ambient temperature is too high, please strengthen heat dissipation)Operating frequency: 150KHzConversion efficiency: up to 95%Module size: 116 × 52 × 15mm1500W Product Parameters:Input voltage: DC10-60VInput current: 10-30V Input voltage, maximum current 30A31-60V input voltage, maximum current 25AStatic working current: 15mA (When the output voltage increases from 12V to 20V, the static current will increase as the output voltage increases)Output voltage: 12-90V continuously adjustable (default output is set to 19V for shipment, please specify if it needs to be adjusted to other voltage values). If there is a multimeter, buyers can adjust it themselves12-90V fixed output (for bulk customers)Output current: 20A MAX If it exceeds 15A, please strengthen heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)Constant current range: 0.8-20A (+/-0.3A)Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)Package list:Boost Converter*1
