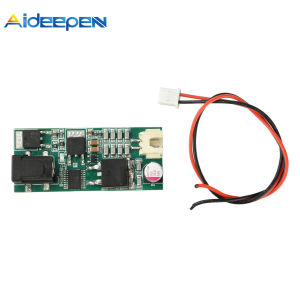

Aideepen DC 8-24V Wireless Air Isolation Induction Lamp High Power Driver Module Inductive LED Wireless Induction Lamp DIY Kit

Features: 1. Supports wide voltage input through DC interface, compatible with multiple power sources, and easy to use. 2. Multiple colors of LED beads are randomly shipped, mixed and creatively illuminated. 3. Using a 150mm large diameter transmitting coil, the induction distance is longer and the lamp beads can be stably lit. 4. The module is compact and lightweight, making it easy to embed into DIY projects and teaching experiments. 5. Contactless wireless power supply, wiring free, suitable for physics popularization and maker education scenarios.Parameter: Name: DIY Module Set for Insulated Light Lamp Drive input voltage: DC 8-24V wide voltage (not exceeding 24V). The higher the input power, the stronger the headlight brightness Input current: 1-5A DC interface: 5.5 * 2.5mm Lamp bead colors: red, orange, yellow, green, blue, light purple, purple, white (colors randomly emitted) Output coil diameter: 150mm Driver module size: 51 * 22 * 12.8mm Single LED bead size: 5 * 6 * 5mm Operation Method: 1. First, connect the power supply coil, then place the LED light bead within the induction range of the coil, and the light bead will light up. （ ⚠️ Attention: The smaller the size of the lamp bead, the shorter its effective sensing distance. ） 2. When using the coil, make sure that the lamp bead and the transmitting coil are always horizontally aligned. If the tilt angle is too large, the brightness of the lamp bead will significantly decrease, and in severe cases, it may not even emit light at all. 3. Please try to avoid the presence of metal objects within the sensing range; Do not directly attach the coil to a metal surface for use. Please pay attention to the distance between the sensor LEDs to avoid mutual interference and affect performance.Package Include:Color 1: 1X driver module 1X terminal wire 2PColor 2: 1X driver module 1X terminal wire 2P 1x150mm coil 5x LED beads (color random)
