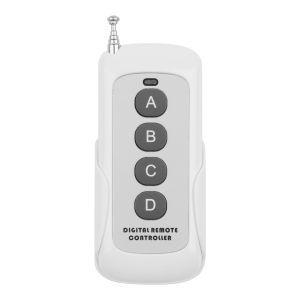

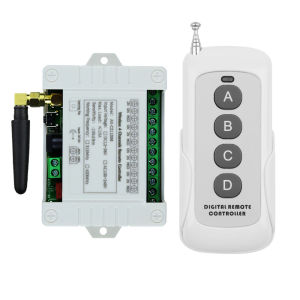

Smart Multiple DC 12v 24V 36V 10A 433MHz 4 Channel Wireless Relay RF Remote Control Switch Receiver + 4button 200M Transmitter

Note:Our products are a combination package, which can be used together or separately, so the products received by the buyer are based on the option picture of the SKU. If you only purchase the receiver, you will only receive the receiver without the remote control. If you only purchase the remote control, you will only receive the remote control without the receiver.About Receiver:Model No.: AK-C2110081. Working voltage: DC12V-36V2. Quiescent condition: Less than 6mA3. Working temperature: -40 Degree +80 Degree4. Receiver sensitivity: more than -105dBm5. Working frequency: 433mhz6. Output voltage: DC and AC is optional7. Max load current: 10A8. Size: 968029mmAbout Working way:Working way changed by Learning buttonMomentary: Press the Learning Button 1 times.Relay: Press and hold -> On; Release -> Off.Toggle: Press the Learning Button 2 times.Relay: Press -> On; Press same button again -> Off·Latched: Press the Learning Button 3 times.Relay: Press -> On; Press other button -> Off.2channel Momentary +2channel Latched: Press the Learning Button 4 times. 2channel Momentary +2channel Toggle: Press the Learning Button 5 times.2channel Toggle +2channel Latched: Press the Learning Button 6 times.About Learning and clearing Method:Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond ,it means clearning code successful.
