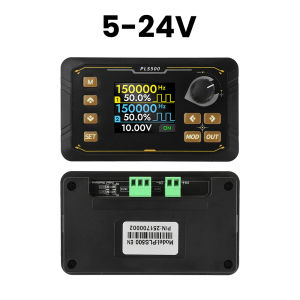

Aideepen | PLS500 Pulse PWM 1Hz~500kHz Signal Generator 2 CH Frequency Meter Adjustable Dead Time Duty Cycle Programmable for Servo Control

Features:1. 1.8-inch color screen + encoder operation for quick and convenient adjustments, supporting load mode2. High-frequency precision control with low-frequency stability; 1Hz stepping ideal for sweep frequency and fine-tuning3. Duty cycle adjustable from 0-100% in 0.1% increments; maintains distortion-free output at full pull-up or pull-down4. Dual-channel phase shift testing simplifies industrial control and servo synchronization signal simulation5. Ultra-fast rise time suitable for driver and switching device testing; preserves pristine waveforms even at high frequenciesParameter:Output Channels: CH1+CH2Operating Voltage: DC 5-24VFrequency Range: 1Hz-500kHzStep Size: 1HzFrequency Accuracy1kHz-10kHz: 0.2%10kHz-50kHz: 0.4%50kHz-500kHz: 2%Duty Cycle Range: 0-100% (0.1% step)Phase Range: 0-359° (1° step)Rise Time: 10nsT0 Delay Output Time: 00.000s-60.000s, minimum settable to 0.001sT1 Positive Pulse Width: 00.000s–60.000s, minimum settable value 0.001sT2 Negative Pulse Width: 00.000s–60.000s, minimum settable value 0.001sPulse Count: 1–60000, ∞Dead time: 00-91ns (7ns increments); 00.0-20.0μs (0.1μs increments)PWM mode: Conventional/Complementary (with dead time)Operation mode: Encoder + buttonsDisplay: 1.8-inch color screenProduct dimensions: 1086324mmCutout dimensions: 10056mmPackage include:Pulse PWM Signal Generator Display panel1Instruction manual*1
