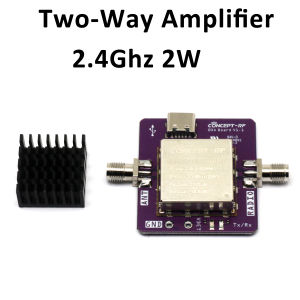

2.4Ghz 5.8Ghz 2W RF Bidirectional Amplifier Signal Power Boost WIFI Drone Video Image Transmission 868Mhz 915M Helium Miner LORA

Bidirectional RF Power Amplifier820-1000MHz/2.4GHz/5.1-5.9GHz | 2W Psat | UAV/WiFi /Drone Range ExtenderImportant Notes:plesae Use only regular 5V USB chargers - Please do not use fast chargersas they will destroy the device. If it burns out, please bear the responsibility yourselfKey SpecificationsParameter820-1000MHz2.4GHz5.1-5.9GHzPsat (TX/RX)30dBm (1W)33dBm (2W)33dBm (2W)Gain (TX)13dB typ.19.5dB typ.24dB typ.Gain (RX)15dB typ.14.5dB typ.16.5dB typ.Max RF Input (TX)+20dBm+20dBm+15dBmSwitching Speed≤100ns @ 0dBm thresholdGlobal ParametersValueVoltage Supply5V ±0.5V (4.75-5.5V)Dimensions23.5×23.5×7.5mmWeight4.1g (unpackaged)Technical HighlightsTrue Bidirectional Operation: Seamless T/R switchingFlat Gain/Power Response: ±1dB across bandsUltra-Fast Switching: 100ns transition (enables FDD systems)5V Single-Supply: type-c usbApplicationsIndustryUse CaseUAV/DroneVideo/Data Link Range ExtensionWiFi 6/6EHigh-Power Mesh BackhaulIndustrial IoTLoRa/Sigfox Repeaters5G NRn77/n78/n79 Band Boosters
