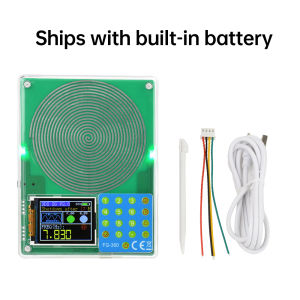

FG-300 0.001Hz-200KHz TFT Color Screen Adjustable MultiFunction Schumann Waveform Generator Multiple Waveform Output USB Type C

Features:1. Low temperature drift crystal, high precision DDS frequency synthesis, high frequency stability, resolution up to 0.001HZ, in the low-frequency accuracy of up to 0.001HZ2. Up to 13 types of waveform output to meet different needs3. Colorful 1.8TFT LCD display, digital keyboard directly input frequency, intuitive and convenient operation.4. With timer shutdown, signal lamp brightness adjustment, screen backlight brightness adjustment.5. All setup parameters can be saved automatically, no need to setup next time.Product Overview:FG-300 is a multi-functional, high-precision, portable signal generator, capable of generating sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, EKG, half-wave, Lorentz, Gauss, Singer, exponential rise, exponential fall, as well as 7.83HZ Schumann waveforms and other waveforms, the onboard helical antenna can be used as a high-precision Schumann waveform generator, which can be widely used in the field of electronic research and development, production testing, Education and teaching, repair and maintenance, audio testing and other fields.Parameter:Frequency range: sine wave 0.001Hz-200kHz (which output amplitude flat frequency to 100 kHz, with the further increase in frequency output amplitude will be reduced, the distortion increases), other waveforms 0.001Hz-20kHz (but the upper limit of the adjustable frequency is not limited, if the distortion and wobbling requirements are not too high, the use of frequency can be further increased)Waveform types: sine, square, triangle, forward sawtooth, reverse sawtooth, ECG, half-wave, Loren, Gauss, Singer, exponential rise, exponential fall, as well as 7.83HZ Schumann waveOutput amplitude: 2.5V VPPOutput impedance: 330 ohmsDisplay: 1.8-inch TFT displayPower supply voltage: USB-TYPE C 5VOverall Dimension: 1279818mmPackage include:Main unit1TYPE C power supply cable14PIN signal output cable1Stylus1
