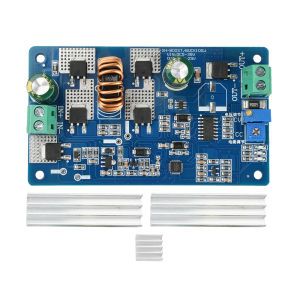

diymore | Dc 5-35v 10a Max Automatic Boost Buck High-Power Constant Voltage Constant Current Battery Charging Led Driver Module

Features:1. High-performance design, boost/buck module, efficiency up to 95%, high efficiency and low heating2.Solid materials, equipped with 6 MOS tubes, to ensure stable power conversion, multiple protection and more secure3. Constant voltage and constant current output, voltage and current can be adjusted to adapt to the needs of a variety of applications4. Perfect protection function, covering input over-current, under-voltage, backflow prevention and short-circuit protection.5. Indicator light with rich functions, real-time display of operating status, intuitive and convenient operation.Product application scenarios:1, high-capacity lithium iron lithium battery high-current constant-current charging2, high-power LED constant-current drive3, the battery regulator power supply4, can be used as an adjustable voltage regulator power supplyParameter:Input voltage range: DC 5-35VInput maximum operating current: 10A MAXOutput voltage range: DC 2.5-30VAdjustable output current range: 0.1-9AAdjustable output maximum power: 150WRated power: 120WTypical efficiency: 95% (90%-97%)Operating frequency: 200KHZOutput constant voltage indicator: blueOutput constant current Indicator Light: Red and BlueBattery Full Indicator Light: GreenBattery Near Full Indicator Light: Blue and GreenHeat Dissipation: Heat SinkPackage include:Module1Heat Sink1
