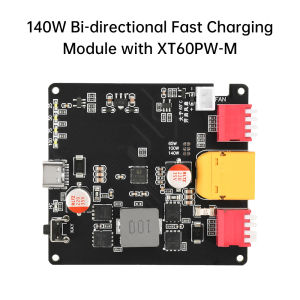

diymore | 2S 3S 4S 5S 6S Lithium Ion Battery Charging Board Bidirectional Fast Charger Module IP2366 with Auto Temperature Control 140W

Features:1.Support 140W high power two-way fast charging, charging and discharging efficiency, saving time2.Compatible with 2-6S lithium batteries, applicable to a variety of battery configurations, strong flexibility3. High-efficiency lifting voltage circuit, ensure stable output, adapt to the needs of different equipment4. Built-in automatic temperature control function, real-time temperature adjustment, to ensure safe and efficient operation.5. Optimized circuit design, reduce power consumption, improve conversion efficiency and reduce heat generation.Parameter:Integrated FCP input and output fast charging protocolIntegrated AFC input/output fast charging protocolIntegrated SCP input/output fast charging protocolIntegrated DRP Try.SRC protocol, PD3.1 input/output fast charging protocolIntegrated QC2.0/QC3.0/QC3.0+ output fast charging protocolsSupport 5V, 9V, 12V, 15V, 20V, 28V block voltageMaximum support 28V5A, 140WSupport lithium iron phosphate, lithium ternary, polymer and other batteriesUse operation:1. First dial the switch (and dial the right)2. Then connect the battery (the battery can only 2-6S, can not be reversed)3. from the TYPE-C port plugged into the charger to activate (please use the standard regular charger, pay attention to a major brand of cell phones with a rare agreement with the fast-charging charger is modified by the original factory does not belong to the standard charging protocol, the kind of charging is only suitable for the original cell phone it is equipped with)4. To discharge the phone first plugged in and then short press the key5. If you have high precision requirements for power indication, make sure that your battery voltage and capacity and internal resistance are consistent enough, especially the internal resistance should be less than 15mΩ or less, and make sure that the wires connected to it have more than 15A current, and these conditions are met after charging and discharging cycle for more than one time, and the power will be calibrated automatically.How to choose the switch:The first step is to confirm that your battery is a few strings? What is the full voltage of a single battery?The second step is to look at the circuit board module switch below the corresponding silkscreen instructions, the switch downward dial for openThe third step is toggle the string number switch1、6S Dial the switch corresponding to 6S.2, 5S dial 5S corresponding switch3、4S Dial the switch corresponding to 4S.4、3S Dial the switch corresponding to 3S.5、2S need 3S and 4S corresponding to the two switches together.The fourth step is toggle the voltage switch1、If the single full charge is 4.4V, dial the switch corresponding to 4.4V.2、If the single full charge is 4.35V, dial the switch corresponding to 4.35V.3、Dial the switch corresponding to 4.2V if the full power of single section is 4.2V.4、Dial the switch corresponding to 4.1V if the full power of single section is 4.1V.5, a single full charge is 3.65V need to be 4.2V and 4.2V corresponding to the two switches toggled togetherWhat is the reason that the indicator light keeps flashing?1: The indicator light keeps flashing to indicate an error message.2: It may be that the switch is not dialed correctly or the voltage is not correct, resulting in the main control recognizes over-voltage or under-voltage, etc. so the indicator light has been flashing.3: Maybe the output voltage of the plugged-in charger is too high or too low, the voltage deviation of the fast charging gear is too large or the ripple is too large, resulting in the board can not work properly, so the indicator light keeps flashing.Package include:Two-way fast charging module *1
