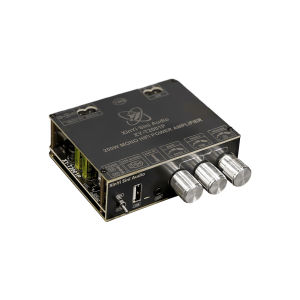

Aideepen | XY-T2001P Wireless Audio Amplifier Board 200W BT TWS Stereo DC 12-30V Home Theater TPA3221 Chip

Features:1. Support TWS box interconnection to form a stereo system.2. Adopting the original imported TPA3221 chip with high fidelity amplification.3. Multiple audio input methods, fully compatible with Bluetooth/AUX/U drives.4. Independent adjustment of high and low frequencies, with distinct levels of sound quality.5. Suitable for home theaters, outdoor performances, and other settings.Product Parameters:Product Name: TWS Bluetooth Digital Audio Amplifier BoardProduct Model: XY-T2001PPower supply: DC12-30V/3AAudio input: Bluetooth/AUX/USBBluetooth audio decoding: SBC/AACUSB lossless decoding: WAV/FLAC/APE/MP3Power supply and power output:①12V:Output power: 4 Ω @ 20W; 8 Ω @ 10W②24V:Output power: 4 Ω @ 70W; 8 Ω @ 35W③30V:Output power: 8 Ω @ 35W; 4 Ω @ 100W; 2 Ω @ 200WTWS box operation instructions:TWS box connection:1. Two power amplifier boards are powered on, and the blue indicator light flashes rapidly (do not pair with Bluetooth on your phone/do not connect AUX/do not plug in USB flash drive).2. Press the volume knob of one of the amplifier boards for 4 consecutive times, and the TWS red indicator light will start flashing rapidly (the other one will keep the blue indicator light flashing rapidly).3. Wait for the TWS red indicator light to change from fast flashing to long on (host), and the other blue indicator light to turn off and the red indicator light to start flashing slowly (slave), indicating that the TWS has been successfully connected; If the red indicator light goes out, it means the connection has failed. You can press the volume knob again 4 times to connect to TWS.After the TWS connection is successful, open your phone's Bluetooth to search for XinYi and connect, and your phone will play music; Or insert an AUX or USB drive to play music.Cancel TWS box function:During the TWS box connection process, press the volume knob of any amplifier board four times in a row to exit the TWS box connection mode.Note:When using the TWS box function, it is necessary to first connect the TWS box and then pair it with the phone's Bluetooth.The TWS box function is in memory mode, and it will automatically connect to the box the next time it is turned on.Product List:1X power amplifier board1X screwdriver
