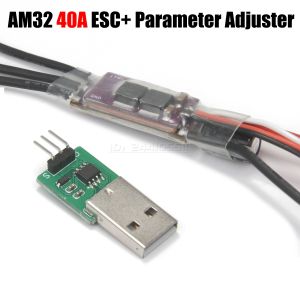

NEEBRC AM32 32-bit 40A 65A Mini ESC Programming BEC Param Converter PWM for RC Crawler Car Axial Traxxas FPV Drone Motor Part

NEEBRC AM32 32-bit 40A 65A Mini ESC Programming BEC Param Converter PWM for RC Crawler Car Axial Traxxas FPV Drone Motor PartDescription:- A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.- Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.- Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.- The enhanced version integrates the BEC module (5V2A) on the basis of the standard version's unchanged size, adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.- Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.- Attention! It is strongly recommended to install a large capacity electrolytic capacitor(NOT include, prepare by yourself) outside the ESC to improve its working condition!Specifications:Name: AM32 40A ESCFirmware: AM32Master: AT32Working voltage: 2-4SOutput current: 30A continuous, 40A maximumSupported signals: PWM/DSHOT/sine, etc.BEC module: Yes, 5V 2ACable length: 10cmSize: 30127mmWeight: 11gName: AM32 65A ESCFirmware: v2.16Master: AT32Working voltage: 2-6SMaximum current: 65ASupported signals: PWM/DSHOT/sine, etc.BEC: Onboard integrationLED status light: SupportedTelemetry feedback: SupportedExternal switch: SupportedBare board size: 52257mm (length, width, thickness)Bare board weight: 13.49gItem Name: AM32 ESC Param ConverterInterface: USB/Type-CProduct size: 41.50.8cm/2.51.130.78cmPackage size: 4.8831cmParameter adjustment instructions1. The 3P plug of the ESC, the white signal line corresponds to S, and the black BEC negative line corresponds to G, plug into the S and G of the parameter adjuster.2. Plug the parameter adjuster into the USB port of the computer (win10 is recommended), and plug in the battery of the ESC.3. In the FreelyRC product manual and tool library, download the parameter adjuster driver (win10 does not require installation), and the parameter adjustment software package Esc_Config_Tool_1.82 (unzip it without installation).4. After ensuring that the parameter adjuster driver is normal (the CH340 serial port device is recognized in the device manager), open the unzipped parameter adjustment software folder and run "SerialPortConnector.exe"5. Operate the software in the order shown belowIn step 2, select the COM number corresponding to the adjuster in the drop-down box.Note: This COM number is different for each computer. You need to select the COM port corresponding to the tuner device on your computer.6. Click the "Connect" button, and an "M1" button will appear in the software interface. Click "M1".7. Start parameter adjustment (example: bidirectional car, turn on FOC)8. Press Save Settings to save the settings and then unplug the ESC.Note:1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
