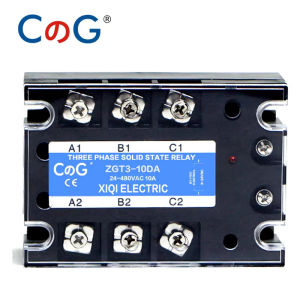

CG | CG 3 Phase DC Control AC Relay SSR-10A 25A 40A 60A 80A 100A Three Phase SSR 3-32VDC to 24-480VAC Solid State Relay Module

STEP 1: Choose a correct control ModeAA- AC Control ACDA- DC Control ACDD- DC Control DCVA-Control and AdjustSTEP 2: Choose a correct typeCurrent of Equipment/Ratio = Current of SSRPS: The Ratio depend on the kind of your loading equipment.Resistive load :70%, Inductive load:20%,Capacitive load：10%.STEP 3: Choose a suitable heat sink.During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.PS: Our Heat Sink include 2 screws (for install heat sink)NOTICE:The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
