DUMBORC FZD Simulation Light Controller 12 Led Lights System Kit for 1/8 1/10 RC Car Drift Truck SCX10 TAMIYA CC01 4WD Axial

DUMBORC FZD Simulation Light Controller 12 Led Lights System Kit for 1/8 1/10 RC Car Drift Truck SCX10 TAMIYA CC01 4WD Axial

Attention: 12 LED  Lights except 2 headllghts 5mm,the rest 3mm

Lamp control:

The output voltage of the channel connected to the LED is 5 V, which can be used as a high-level drive relay of the module. Can be connected to LED light, can also be used as an external switch with a high degree of reproduction.

Low voltage signal:

Automatic identification battery 2 S / 3 S, the default alarm voltage of 2 S batteries is 7.2 v, and the default alarm voltage of 3 S batteries is 10.7 v

Specifications: Product:FZD Light Controller Connection CH2: electrically modulated signal line (6V output, supports high voltage) CH3: enable / disable control signal LED: connected to headlights (5V output) M1: Coupling motor BUZ: beep (low voltage signal) Power : Connect the battery Item Size:352113mm

Item Weight:11g

Two types of connection:

Car controller:

CH2: 2 channels

CH3: 3 channels

LED: Headlights

M1: engine

Buz: Low Voltage Alarm

Aircraft control panel:

CH2: 3 channels

CH3: Connecting a two-stage switch

LED: light lamp

M1: engine

Buz: Low Voltage Alarm

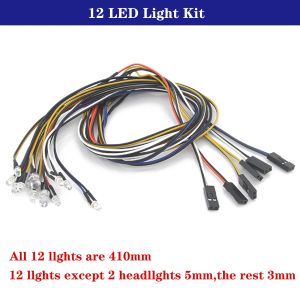

Product: 12LED Light

Material: Plastics

Number of LED bulbs: 12 Input voltage: 4.8V - 6.0V Working Current: 100mA

Lights colors: yellow light * 2, blue light * 1, red light * 1, white light * 2,

Lamp bead diameter: 12 LED  Lights except 2 headllghts 5mm,the rest 3mm the rest 3mm(Random) Circuit board size: 553515.8mm Suitable for: 1/10 RC cars

Remarks: 2 lamp beads of color, namely 6 lamp wires and 12 lamp beads, the total length of each wire 410mm
