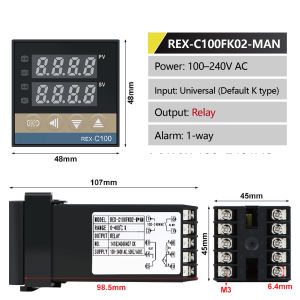

Digital Temp Thermostat REX-C100 C400 C700 C900 PID Temperature Controller with Solid State Relay Output

1.NOTEThis controller does not measure temperature directly — it reads external sensor inputs. The universal input version supports up to 1200°C, while the default K-type input supports up to 999°C.Some configurations and features may not be listed due to space limitations. For specific requirements, please contact us directly.The default configuration of the digital temperature controller includes:Power Supply: 220V ±10%, 50HzInput Signal Options: Selectable from K, E, J, PT100, CU50Output Options: Relay, SSR solid-state relay, PT100, or 4-20mA (selectable)Alarm Settings: Fully adjustable across the entire measuring rangeAvailable Models and Panel Dimensions:REX-C100: 48×48mmREX-C400: 96×48mmREX-C700: 72×72mmREX-C900: 96×96mm2.ParametersParameterSpecificationTemperature Range0 - 1200°CRated Voltage220V~±10% 50HzPower Consumption4WControl ModeFuzzy PID ControlAlarm RangeFull-scale adjustableWiring MethodTerminal connectionOperating Temperature0 - 50°CRelative Humidity35%~85%RH (non-corrosive)Input TypesK/E/PT100 (selectable)Output OptionsRelay, SSR (solid-state relay)Accuracy±0.1% FS ±1 digit or ±0.5% FS ±1 digitModelPanel Dimensions (mm)REX-C10048 × 48REX-C40096 × 48REX-C70072 × 72REX-C90096 × 963.FaturesHigh Visibility DisplayBright digital tube display provides clear and easy-to-read temperature readings, even in low-light environments.Stable Power SupplyEquipped with a built-in copper transformer to deliver reliable performance and extended service life.Versatile Input and Output OptionsCompatible with K, E, and PT100 input signals, and supports both relay and SSR output to meet a variety of application needs.Compact and Durable DesignAvailable in multiple panel sizes to suit different installation spaces, offering both flexibility and durability.4.AlicationsInjection Molding MachinesIndustrial Ovens and DryersOther Industrial Equipment5.FAQsQ: How do I select the correct input type for my application?A: The REX-C100 supports K, E, and PT100 input types. Select the input based on the sensor you are using to ensure accurate temperature readings.Q: Is the installation process complicated?A: Not at all. The device includes a clear user manual and follows standard panel dimensions, making installation quick and straightforward.Q: What are the main benefits of PID control?A: PID control offers precise and stable temperature regulation, enhancing process consistency and overall efficiency.
