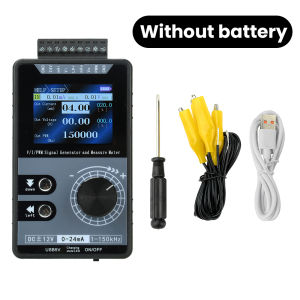

Aideepen | High-Precision Handheld PWM Pulse Signal Generator 0-20mA 4-20mA 0-10V Current Voltage Output Signal Source Analog Simulator

Features:1. Triple power supply mode: 24V terminal/USB-C/built-in lithium battery, flexibly adaptable to various work scenarios2. High frequency PWM output: 1-150kHz frequency+0-100% duty cycle, meeting the requirements of motor speed regulation3. Professional level human-computer interaction: 2-inch TFT color screen display, switchable between Chinese and English interfaces, information is clear at a glance4. Precise and convenient adjustment: EC11 digital encoder large knob, electroplated button cap, excellent operation feel5. Deep adaptation to industrial sites: specifically designed for industrial control signal debugging and PWM motor speed regulation, suitable for multiple scenariosProduct Parameters:Product Name: Color Screen Multifunctional Signal Generator3 power supply methods: external terminal DC 24V/USB-C/(with battery) built-in lithium batteryBattery type: Built in 3.7V 1500mAh lithium batteryInterface: Type C interfaceDisplay screen: 2-inch TFT color display screen (320 * 240 pixels)Display interface: switchable between Chinese and English interfaceKnob: EC11 digital encoder knob (20 grids per turn, with buttons)Terminal plug specification: 15EDGK3.81 (9P)Working environment: 0-40 ℃, relative humidityApplication scenarios: industrial control DC analog signal debugging, electrical equipment installation and maintenance, PWM motor speed regulation, etcVoltage output range: ± 12V (maximum 20mA with load, with short circuit protection)Voltage measurement range: ± 50VCurrent output range: 0-24mA (maximum sampling resistance of 500 Ω, can be short circuited)Current measurement range: ± 50mAOutput adjustment range: can be set arbitrarily, such as 0-20mA/4-20mA/0-10V/0-5V, and the corresponding engineering display value can be set by the userPWM pulse square wave output: frequency adjustable 1-150kHz, duty cycle adjustable 0-100% (high level fixed 5V, driving current(Note that this PWM output is not suitable for 12V or 24V systems, as 5V is considered a low level for them):Power supply instructions: 3 power supply methods, can be charged/operated with a mobile phone charger, power bank, or external 24V:1. External wiring terminal power supply DC 24V ± 4V, power 2W (non charging)/5W (charging)2. External USB-C 5V, current 0.4A (non charging)/1A (charging)3. (with battery) Built in 3.7V lithium battery, maximum charging current 0.8A, fully charged battery indicator light turns green and automatically does not charge, usually takes more than 6 hours, fully charged can take 1-5 hours depending on the output load sizeCharging status description:1. In the shutdown state, when the charging port is connected to Type C charging, the charging indicator light below is red, and when fully charged, it is green2. In the power on state, when the charging port is connected to Type C charging, the charging indicator light below is red, and the battery level in the upper right corner of the screen is green, repeatedly increasing the battery level (regardless of how much power is left before charging, it will be green when starting charging). When fully charged, the charging indicator light below is green, and the battery in the upper right corner of the screen is green and does not flash. When disconnecting the Type C charging plug, the battery in the upper right corner of the screen displays whiteNotes:1. Turn off the power first and then connect the wires;2. Exceeding the range indicated by the technical specifications may cause the instrument to malfunction or even be damagedFrequently Asked Questions:Q: How to set the duty cycle of PWM, switch and adjust the frequency Hz/duty cycle%Answer: Press the key to enter PWM regulation, press the knob once to switch the PWM regulation state (frequency 1-150000Hz/duty cycle 0-100%). The corresponding character units are displayed below the PWMQuestion: How to enter the Help/Settings menuAnswer: Press and hold the down key for 2 seconds to enter the menu. Press the down key once to switch between help/settings, and then press the knob again to enter the corresponding interfaceQuestion: What is the square size of the wires providedAnswer: 20AWG (0.5 square meters)Shipping list:Generator host x1One letter screwdriver x1USB charging cable x1Crocodile clip test line x4
