JBD Smart BMS 7S 8S 9S 10S 11S 12S 13S 14S 24V 36V 48V 20A 30A 40A 50A Built-in BT UART Li-ion NMC LiFePo4 Bms Balance Board

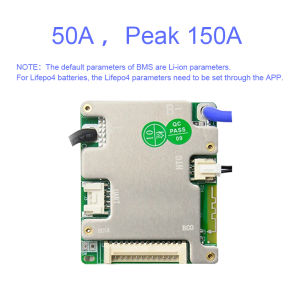

JBD Smart BMS - SP14S004JBD-SP14S004 is a software protection board scheme specially designed for 7~14 serieslithium battery packs. The whole system adopts O2 front-end acquisition chip + BluetoothMCU scheme, and some parameters can be flexibly adjusted through the upper computeraccording to the needs of customers.The Smart BMS support automatically identify 7S 8S 9S 10S 11S 12S 13S 14S li-ion or lifepo4 batteries.BMS uart port built inside bluetooth function,with balance function and temp sensor,support app and PC set and monitor data,support LCD Display monitor parameters.Product IntroductionApplicable Battery Type:3.7v Li-ion/3.2v Lifepo4 Battery.Support Number Of  Strings:automatically identify 7-14S.Size:635212mm.Continuous current 20A,peak 60A continue 1s.Continuous current 30A,peak 90A continue 1s.Continuous current 40A,peak 120A continue 1s.Continuous current 50A,peak 150A continue 1s.Balance Model:Static/Charge balance.Balance Current:20-55mA.Temperature Sensor:1pc Internal,1pc External.Application For:Electric scooter,Electric scooter,Electric bycicle,Electric Tools,ect.Package included:BMS with Built-in BT*Balance Wires.Function Introduction(1)BT-APP in PhoneDownload link: Phone-"Xiaoxiang BMS"IOS: Search it in the APP STOREAndroid: https://www.pgyer.com/Bzt1Support Both IOS and Android version,can monitor and change the parameters.(need to be within the specified range).(2)UART- JBD PC Tool Box-Monitor and Set parameters.(PC Tool Software: Contact customer service)(3)UART-LCD Displayer-Can monitor paremeters on LCD displayer.Attention(1)All smart bms has BT and UART function(2)The bms built inside bluetooth on the pcb board,needn't buy extra bluetooth separately.(3)UART smart accessories need buy separately:Contact customer service(4)APP manual/bms specification-pls contact customer service.
