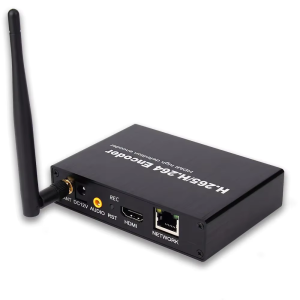

TUOYING | WiFi Wireless HD Video Encoder H265 H264 HEVC IPTV CATV Hdmi to IP RTMP SRT UDP HLS RTSP Live Streaming on the Internet

H.265 HD Encoder Specification(ApplicationIPTV Satellite Modulator/Hotel TV SystemCCTV Camera/CamcorderUAV Image Transmission/DLSR CameraDrone/DV/FPV/Medical EquipmentDigital Signage/Video ConferenceOnline Live Streaming Broadcast or ServerTeaching/Campus Broadcast/TelemedicineMultimedia Stitching DisplayNVR/Recording SystemPackage Include1x HDMI Video Encoder or 1x NDI HDMI Video Encoder1x DC12V 1A Power Adapter1x HDMI Cable(1M)1x Ethernet Cable(1M)1x Live Broadcasting Quick GuideBasic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)Model: ON-DMI-16EW (Max. 50fps)Video/Audio Encoding Video Encoding: H.265/H.264Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable)Main Stream: 19201080、1600900、14401050、1440900、1360768、12801024、1280720Sub Stream: 704576、640480、640352、352288、320240Video StreamTS (Main Stream): http://192.168.1.120:80/ts/0TS (Sub Stream): http://192.168.1.120:80/ts/1HLS (Main Stream): http://192.168.1.120/hls/0.m3u8HLS (Sub Stream): http://192.168.1.120/hls/1.m3u8RTSP (Main Stream): rtsp://192.168.1.120:554/live/0RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1UDP: udp://@224.1.2.3:10000Protocols TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIFInterface Network Port: RJ45 10M/100M Self Adaptive Ethernet PortHDMI: 1ch HDMI InputAudio: 1ch 3.5mm Line-in PortPower: 1ch DC12V Power InputReset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)OthersOperating Temperature: -10℃~+55℃[14°F~131°F]Operating Humidity: ≤95%(Non-Condensing)Power Supply: DC12V 1A or HigherPower Consumption: ≤3WUnit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in]Net Weight: 186g[0.41lb, 6.56oz]Gross Weight: 385g[0.85lb, 13.58oz]NOTE WiFi will not be available when NDI is enabledAbout usSince its inception, the company has always focused on digital television, professional audiovisual, and other professional audio and video signal processing software and hardware equipment and system integration research and development, manufacturing and sales. Through long-term, sustained R & D investment and independent innovation, relying on digital signal processing technology, analog signal processing technology and digital-analog hybrid processing technology, the company has gradually developed a digital TV (front-end equipment and wireless transmission equipment), professional audiovisual, application products, "3 + N" business layout, products covering encoding and transcoding, multiplexing, modulation, coding and modulation, coding and video signal processing software and hardware integration equipment and system integration. The products cover more than ten kinds of product series and hundreds of product models such as coding and transcoding, multiplexing, modulation, coding and modulation, multiplexing and modulation, demodulation and scrambling decoding, terrestrial digital TV broadcasting transmitter, stereo FM broadcasting transmitter, solid-state power source, low-level RF front-end, IPTV management software, intelligent release terminal series, etc., and the business system of multilevel products and system integration, which has become the minority of the domestic products with complete product line layout, We have become one of the few enterprises in China that have a complete product line layout and mastered the mainstream digital TV transmission standards.We have been adhering to the concept of "independent research and development, dare to be the first, and continuous innovation", and cultivated a R & D team with high executive force and high innovation, in this team full of vitality, the vast majority of the members graduated from domestic and foreign universities in communications, software, electronics and other key national disciplines, the company has built up a senior, middle-nullnullnullnullnullnullnullnullnullnullnullnull
