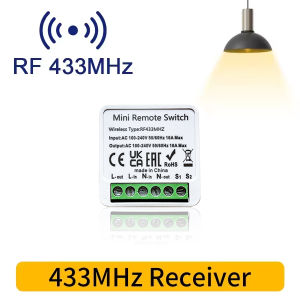

RF 433 MHz Smart Switch Mini DIY Wireless Remote Control Light Switches 16A Relay Receiver Automation Module for Home Led Lamp

Controller parameter

Working voltage: AC85-240V 60HZ/50HZ Working frequency: 433.92MHZ Power consumption in standby mode:<0.3W Maximum current:10A Receiving sensitivity: -108dBM Working way: wireless control Coding way: learning code Modulation: ASK Working temperature: -10℃~+70℃ Out size: 6741.225.7(mm) Body size: 47.441.225.7 (mm) distance:20-100m(in open area)

Pairing method (1) Pairing code - Only can set Toggle Mode Manual pairing method: press the controller code key for 2 times and the LED flashes to enter the code matching mode. At this time, press the remote control switch 2 times, and the light is successfully controlled and paired; (2) Clearing mode Manual code clearing method: press the controller key for 8 times,and the LED flashes to clear the code successfully.
