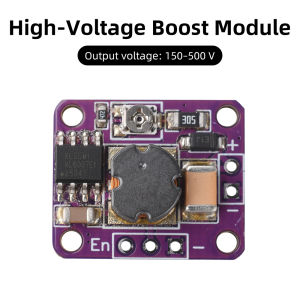

DC 3.6-20V to 120-300V Boost Module Ultra Small Size High Efficiency DC-DC Power Converter For DIY High Voltage Projects

Features:1. Input voltage range: DC 3.6-20V, meeting the needs of different devices2. High voltage optional: Output supports 120-300V or 150-500V (model differentiation)3. Ultra small size: Mini exterior design, friendly embedding, flexible adaptation to various power scenarios4. Optimize circuit design: adopt high-efficiency boost technology with strong reliability5. Wide applicability: Suitable for DIY production of various high-voltage power supplies, small ion generators, etcProduct Parameters:Input voltage: DC 3.6-20VOutput voltage: DC 120-300V; DC 150-500V (optional specifications)Size: 20mm x 17mmProduct thickness: 6.95mmPacking ListModule * 1Usage:1. Wide voltage input, the input voltage should not exceed 24V.2. The boost module has no input reverse protection, pay attention to polarity.3. The module will generate heat during operation, please do not touch it with your hands.When inputting 4.12v, it can stably carry 4 tubes.5. EN is the enable pin, with the output turned on by default and turned off when low.6. It is recommended that the output current be less than 15mA.7. The adjustable resistor is used to adjust the output voltage. Please use an insulated screwdriver when adjusting.8. The module has high voltage output, be careful of electric shock.
