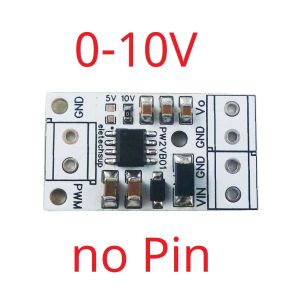

PW2VB01 PLC MCU FPGA Analog IO Expansion Board Signal Generator 0-5V/0-10V Frequency to Voltage Module PWM to DAC Converter

1PCS 0-5V/0-10V Frequency to Voltage Module PWM to DAC Converter PLC MCU FPGA Analog IO Expansion Board Signal GeneratorFeatures:Working voltage: 10V-30V (Recommended 12V/24V)Working current: <2mAPWM Duty cycle: 0%-100%PWM Frequency: 50Hz to 50KHzPWM Level: 3.3V / 5VOutput voltage range: 0-5V/0-10VOutput voltage error: < 1%Output voltage linearity error <0.5%Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V)Startup time: <2msOperating temperature: -40°C to 85°CSize : 29.5 x 16.5 x 6mmWeight: 2.2g(Only Board) ;4.5g(With Terminal)Typical Application:PWM to 0-5V/0-10V Outputfor Arduino UNO MEGA PRO DUE DACfor Raspberr Pi 2 3B+PLC analog IO expansion boardMotor speed regulation, LED dimmingInverter, power supplyIndustrial analog signal isolationWiring diagram:PW2VB01 input PWM signal with 0%-100% duty cycle, and linearly convert it into 0-5V or 0-10V analog voltage output.Example 1: If a 50% duty cycle PWM signal is input, PW1VA0 outputs 2.5V (0-5V version)/outputs 5V (0-10V version)Example 2: If output duty cycle 75% PWM signal, PW1VA0 output 3.75V (0-5V version) / output 7.5V (0-10V version)Pin description:Vin : Power+GND: Power-GND: Output-Vo : Output+PWM: PWM signal+GND: PWM signal-
