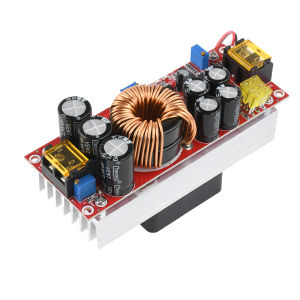

Aideepen | 1800W 40A DC-DC Boost Converter 10-60V to 12-90V Adjustable Step Up Module with Constant Current&reverse protection for Charger

Features:1. Made from high-quality materials, ensuring superior quality2. Features a fan-based cooling system, providing excellent heat dissipation and higher output power3. Temperature-controlled fan utilising fluid dynamic bearing technology, achieving an optimal balance between noise levels and cooling efficiency. The fan remains stationary under light loads. It activates automatically when the load temperature reaches approximately 60°C, effectively reducing noise and extending service life4. The heat sink for the main power transistor is made of high-quality aluminium oxide, with a thermal conductivity 10 times that of standard thermal pads5. Extra-large silicon-iron-aluminium magnetic core, utilising four strands of 1.2mm² pure copper enamelled wire, resulting in low heat generation and high efficiency6. Features constant current functionality, suitable for applications such as boosting vehicle battery voltage and battery chargingSpecifications:Name: DC-DC Boost Power ModuleOutput Power: 1800WInput Voltage Range: 10V–60VOutput Voltage Range: 12V–90VInput Current: 40AOutput Current: 22AConversion Efficiency: 48V to 60V at 8A (98.1%)48V to 72V at 8A (98.1%)48V to 84V at 8A (97.6%)Charging Regulation: 10% to 50% charging (72V output)Temperature Coefficient: 50% loadRipple and Noise: 20MHz bandwidth (48V–72V, 4A) 100mVp-pSwitching Frequency: VIN = 48V, VO = 72V, 4A (110kHz)Quiescent Current: VIN = 48V, VO = 72V (18mA)Input Reverse Protection: YesStorage Humidity: 95%Operating Temperature: -20 to 65 °CStorage temperature: -40 to 125 °CTemperature rise during operation: 48V to 60V, 5A (45 °C)Over-temperature protection: 60 °CTerminal configuration: Input, output (solderless, terminal blocks).Cooling method: FanPackage list:Boost converter *1
