Type-C USB 2S 3S Li-ion Battery Charger Module 15W with Balance QC Fast Charge 8.4V 12.6V 1.5A Adjustable Boost Converter

p{margin-block-start: 0; margin-block-end: 0}

Type-C USB Li-ion Battery Charger Module – Supports 2S/3S Balance Charging, QC Fast Charge 15W, 1.5A Adjustable, Full Protections, Ideal for Drone/Power Bank!

Key Features & Benefits：

✅ All-in-One Battery Management: More than a boost module! Integrates balance charging (2S), QC fast charge, full protection circuits for safe & efficient 2S/3S Li-ion charging

✅ QC 3.0 Fast Charge & 15W High Power: Supports Quick Charge protocol, delivers up to 15W charging power with QC charger, significantly reduces charging time

✅ Automatic Buck-Boost Operation: Intelligently handles charging even when input voltage (5V) is lower than battery voltage, no external booster needed

✅ Comprehensive Protection Suite: Built-in input OVP/UVP, output OCP/OVP/SCP, charging timeout protection for module and battery safety

✅ Easy 2S/3S Selection & Status LED: Simple jumper cap selects 2S/3S mode, LED clearly indicates charging status

✅ 1.5A Adjustable Charging Current: Potentiometer allows adjustment of max charging current for different battery capacities

Product Description： This is an intelligent Li-ion charging solution designed for DIY enthusiasts. Say goodbye to basic boost converters and welcome professional-grade battery management! Whether for drones, portable speakers, or emergency power banks, this module delivers safe, efficient charging that extends battery life.

🚨 Critical Selection & Usage Guide (READ BEFORE PURCHASE)：

Select Correct Model: You MUST choose the 2S version (8.4V) or 3S version (12.6V) that matches your battery configuration. Wrong version will not charge properly

Use QC Charger for Full Performance: To achieve max 1.5A charging current and 15W power, you MUST use a Quick Charge compatible USB charger. Standard 5V/2A charger will result in slower charging

Correct Battery Connection: Always connect battery balance plug (2S if available) and main wires correctly to module terminals. Reverse polarity may cause damage

Charging Current Adjustment: Charging current can be adjusted via onboard potentiometer; recommended to set according to battery capacity (e.g., 1C charge)

Battery Type Compatibility: For Li-ion or Li-Po batteries only. NOT suitable for lead-acid, NiMH, or other chemistries

Specifications：

Input Interface: Type-C (Supports QC Fast Charge)

Charging Power: 15W Max

Max Charging Current: 1.5A (Adjustable via potentiometer)

Supported Configurations:

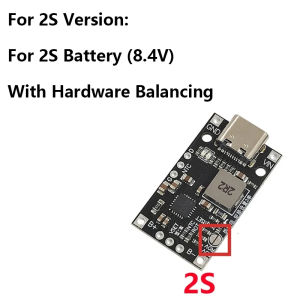

2S Version: 2S Li-ion (8.4V) | Onboard Hardware Balancing

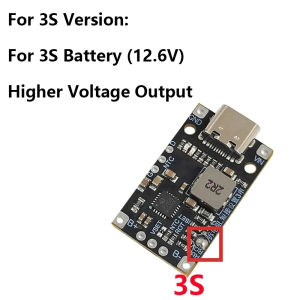

3S Version: 3S Li-ion (12.6V)

Protections: Input OVP/UVP, Output OCP/OVP/SCP, Timeout

Efficiency: Up to 94% (Synchronous Switching)

Operating Temperature: -20°C to +85°C

Package Includes：

1 × Type-C 2S or 3S Battery Charger Module (Shipped according to selected model)
