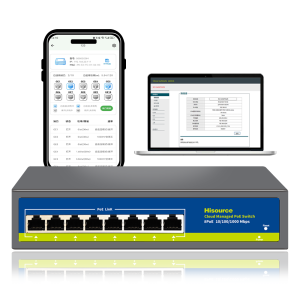

Hisource 4/8 Port Cloud Managed 1000Mbps PoE Switch Support Web/App Smart Managed Remote Control

Please take care to identify whether you are purchasing a 4-port or an 8-port PoE switch.Hi-S21-4GP2G 1. The description of productHi-S21-4GP2G Cloud-managed PoE switch, it is equipped with high-performance hardware and software platform, provides 41000Mbps PoE ports and 21000Mbps Uplink port. The PoE port with 802.3af/at standard, the maximum power of the whole machine is 75W. It adopts 1M large cache chip, support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management.2.The feature of product41000Mbps PoE ports21000Mbps Uplink portSupport L2 management, such as VLAN, QoS, IGMP Snooping and PoE management.WEB, TELNET, CLI managementPort lightning protection 4KV3.The index of product property3.1 The electrical featureList 1: The electrical featureNo.ProjectMinimumRegularMaximum UnitNote1Input Voltage110220240Vac2Input Frequency475063Hz3Input Current2.5A4Standby Power Consumption6WCamera Not Connected or Loaded5Electric Shock100AAC input 110Vac，Cold Start3.2 The property of switch networkList 2: Network featureNo.ProjectIndex of Performance       1Network StandardIEEE802.3、IEEE802.3u、IEEE802.3x、IEEE802.3ab、IEEE802.1Q、IEEE 802.1p2Network Medium10/100/1000BASE-TX: 5class and above non shielded twisted pair3Data Distance≤100M4Switch Capability12Gbps5Forwarding Rate10BASE-tx: 14880pps/port 100BASE-tx: 148800pps/port1000BASE-tx: 1488000pps/port6MAC AddressMAC address table 2K7Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode8Forwarding Rate of Packet8.93Mpps 3.3 The software feature List 3: Software featureNo.Function Item1Web managementSupport Double IP;Default IP:10.77.88.100 Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP;User：admin Password：admin2Management IPSupport static IP settingsSupport DHCP dynamic acquisition3User SettingSupport change user name, change log-in password4Port ManagementSupport port disabling and enabling; Support MTU settingSupport speed, duplex, and flow control settings5Link AggregationSupports up to 2 aggregation groups, with a maximum of 5 members per group;6Port Isolation Support Port Isolation7loopback protectionSupport loopback protection8Port MirroringSupports up to 4 sets of mirror sessions; Support mirroring of incoming and outgoing directional messages for ports and aggregation groups9Port speed limitSupport limits the speed of port’s in and out10EEESupport energy-saving Ethernet protocol11PoESupport PoE configuration12VLANSupport port VLAN；Support 802.1Q VLAN；13QOSSupport 802.1p (COS) classification, DSCP classification, and port classification. Support SP, WRR, WFQ scheduling strategies14MAC managementSupport limit on the number of port MAC address learningSupport adding and deleting static MAC addressesSupport search of MAC addressSupport dynamic MAC address table viewing15Storm SuppressionSupport storm suppression for unknown unicast, multicast, and broadcast packets16Traffic MonitoringSupport monitoring of the number of bytes sent and received, as well as the number of messages sent and received17Cloud-network LinkAPP cloud management18System ManagementSupport system upgradeSupport system backup and restoreSupport resetSupport Web restartSupport configuration saving; Support switching between Chinese and EnglishSupport system name modification3.4 The property of PoE power supplyList 4: The property of PoE power supplyNo.ProjectIndex of Performance1PoE ProtocolIEEE 802.3af/at2Output Power of PoE PortSingle Port≤30W3PoEOutput VoltageDC52V±5%4PoE Power Pin1/2+、3/6-6PoEPower Distance≤250m7Network Medium10/100/1000BASE-TX: 5 class and above non shielded twisted pair8Whole PowerMAX: 75W 2，Hi-G0800GB-C1.The description of productHi-G0800GB-C Cloud-Managed PoE switch, adopt high performance hardware and software platform, support 81000Mbps PoE port, with IEEE802.3af/at standard, whole power maximum 120W. Adopt 4M large cache chips, support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management.2.The feature of product 8100/1000Mbps PoE ports Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management Support WEB, TELNET, CLI management Port Lightning Protection 4KV3.The index of product property3.1 The electrical featureList 1: The electrical featureNo.ProjectMinimumRegularMaximum UnitNote1Input Voltage110220240Vac2Input Frequency475063Hz3Input Current2.5A4Standby Power Consumption6WSwitch not connected to camera or load5Impulse Current100AAC input 110Vac, cold start3.2 The property of switch networkList 2: Network propertyNo.ProjectIndex of Performance1Network StandardIEEE802.3、IEEE802.3u、IEEE802.3x、 IEEE802.3ab、IEEE802.1Q、 IEEE 802.1p2Network Medium10/100/1000BASE-TX: 5class and above non shielded twisted pair3Data Distance≤100M4Switch Capability16Gbps5Forwarding Rate10BASE-tx:14880pps/port 100BASE-tx: 148800pps/port1000BASE-tx: 148800pps/port6MAC AddressMAC address table 8K7Port FunctionPower priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode8Forwarding Rate of Packet11.9Mpps3.3 Software FeaturesSheet 3: Software featuresNo.Function Item1Web managementSupport Double IP;Default IP:10.77.88.100 Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP;User：admin Password：admin2Management IPSupport static IP settingsSupport DHCP dynamic acquisition3User SettingSupport change user name, change log-in password4Port ManagementSupport port disabling and enabling; Support MTU settingSupport speed, duplex, and flow control settings5Link AggregationSupports up to 4 aggregation groups, with a maximum of 8 members per group;6Port IsolationSupport port isolation7loopback protectionSupport loopback protection8Port MirroringSupports up to 4 sets of mirror sessions; Support mirroring of incoming and outgoing directional messages for ports and aggregation groups9Port speed limitSupport limits the speed of port’s in and out10EEESupport energy-saving Ethernet protocol11PoESupport PoE configuration12SNMPSupport SNMP v1&v2c; Support SNMP TrapsTraps type: device cold and hot start, port up&down, authentication failure13Spanning TreeSupport STP、RSTP14LLDPSupport LLDP link layer discovery protocol15VLANSupport port VLAN Support 802.1Q VLAN Support Voice VLANSupport Surveillance VLAN16QOSSupport 802.1p (COS) classification, DSCP classification, and port classification. Support SP, WRR, WFQ scheduling strategies17MulticastSupport IGMP Querier18MAC managementSupport limit on the number of port MAC address learningSupport adding and deleting static MAC addressesSupport search of MAC addressSupport dynamic MAC address table viewing19Storm SuppressionSupport storm suppression for unknown unicast, multicast, and broadcast packets20Traffic MonitoringSupport monitoring of the number of bytes sent and received, as well as the number of messages sent and received21Cable TesterSupport detection of cable status and cable length22Cloud-network LinkAPP cloud management23Network DiagnosisSupport PING24System ManagementSupport system upgradeSupport system backup and restoreSupport resetSupport Web restartSupport configuration saving; Support switching between Chinese and EnglishSupport system name modification3.4 PoE Power Supply FeaturesSheet 4: The property of PoE power supplyNo.ProjectIndex of Performance1Network StandardIEEE 802.3af/at2Output Power of PoE PortSingle Port≤30W3PoE Output VoltageDC52V±5%4PoE Power Pin1/2+、3/6- 6PoE Power Distance≤250m7Network Medium10/100/1000BASE-TX: Category 5 and above unshielded twisted pair8Whole PowerMAX: 120W
