Matek Mateksys MLRS MAVLink MR900-22/mR900-30 900MHz Receiver

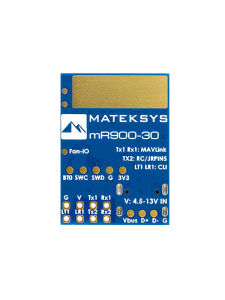

Matek Mateksys mLRS MAVLink mR900-22/mR900-30 900MHz ReceivermLRS MAVLink mR900-22 900MHz Receiver:Specifications- STM32WLE5CC with TCXO, mLRS firmware;- RF Frequency: 900MHz (868MHz, 915MHz FCC);- RF power: -9dBm(min) / 0dBm / 10dBm / 20dBm / 22dBm (158mW);- Antenna connector: IPEX MHF-1;- TX2/RX2: Bi-directional Serial MAVLink;- TX1: RC out (CRSF or SBUS);- 2x buttons for Boot mode and Bind;- Power supply: 4-9V DC @ "V" Pad;- Power dissipation: Average 67mA/Peak 170mA@5V IN(31Hz, 22dbm);- PCB Size: 24x15.5 mm;- Weight: 2.3g w/ antenna;Packing:- 1x mR900-22- 1x IPEX MHF1 dipole antenna. 8cmLED Status- [Red flashing 2Hz], not connected to transmitter- [Green flashing 1Hz], connected to transmitter- [Red and Green alternately ], Binding mode enabledmLRS MAVLink mR900-30 900MHz Receiver:Specifications- STM32G431KB, mLRS firmware- LoRa SX1262 with TCXO- PA/LNA SE2435L- RF Frequency: 900MHz (868MHz, 915MHz FCC)- 915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)- 868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)- Antenna connector: IPEX MHF-1- TX1/RX1: Bi-directional Serial MAVLink- TX2: RC out (CRSF or SBUS)- one buttom for DFU mode and Bind- Power supply: 4.5-13V DC @ "V" Pad- Power dissipation: Average 340mA/Peak 850mA@5V IN(31Hz, 30dbm)- PCB Size: 29x21mm- Weight: 5.3g w/ antennaPacking:- 1x mR900-30- 1x IPEX MHF1 dipole antenna. 8cm- 1x Heatsink 20206mmLED Status[Red flashing 2Hz], not connected to transmitter[Green flashing 1Hz], connected to transmitter[Red and Green alternately ], Binding mode enabled
